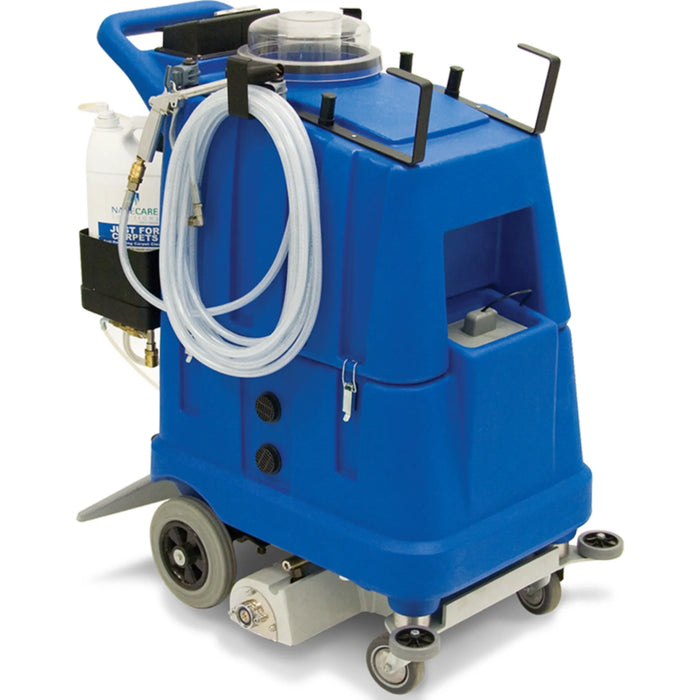

NaceCare AV 12QX Walk-Behind Carpet Extractor – 1400W, 135" WL, 130 PSI

NaceCare AV 12QX: 60 dB Carpet Extractor for Commercial Use

The AV 12QX runs at 60 dB(A) — quiet enough for occupied hospitals, hotels, and office buildings — while delivering 135" of water lift and 95 CFM from its 1400W 3-stage vacuum motor. The 130 PSI diaphragm pump pushes 1.2 GPM through four jets, and detachable 12-gallon polyethylene tanks let crews work 4,000 sq.ft. per hour before stopping. A spring-loaded vacuum shoe maintains consistent carpet contact even on uneven pile.

Extraction Output at Walk-Behind Speed

• 1400W 3-stage motor — generates 135" water lift and 95 CFM for sub-hour dry times on most commercial carpet
• 130 PSI bypass pump — delivers 1.2 GPM without pressure spikes that shorten pump life
• 20" cleaning path — covers 4,000 sq.ft./hr with a 50' cord for full floor plates
• Spring-loaded vacuum shoe — self-adjusts to carpet pile height for consistent moisture recovery
• Optional HT1800 heater — boosts solution temperature for heavily soiled lobbies and traffic lanes

Built for Noise-Sensitive Environments

Healthcare facilities, boutique hotels, and higher-education buildings share one constraint: cleaning must happen while people are present. At 60 dB(A), the AV 12QX operates below the threshold that triggers guest or patient complaints. The 50' power cord eliminates mid-room outlet changes, and the two-piece polyethylene body separates completely so one technician can carry each tank to a service closet without a dolly. Optional Smart Kit compatibility enables automatic pre-spray injection, removing the separate pre-spray step on restorative cleans.

Specifications

Documents

Spec Sheet · Owner Manual
