NaceCare TBL 1120 916799 Walk-Behind Scrubber – 20", 105 lb, 180 RPM, 65 ft Cord

NaceCare TBL 1120 916799 – 20-Inch Pad Assist Scrubber, 105 lb Brush Pressure, 22,000 Sq Ft/Hr

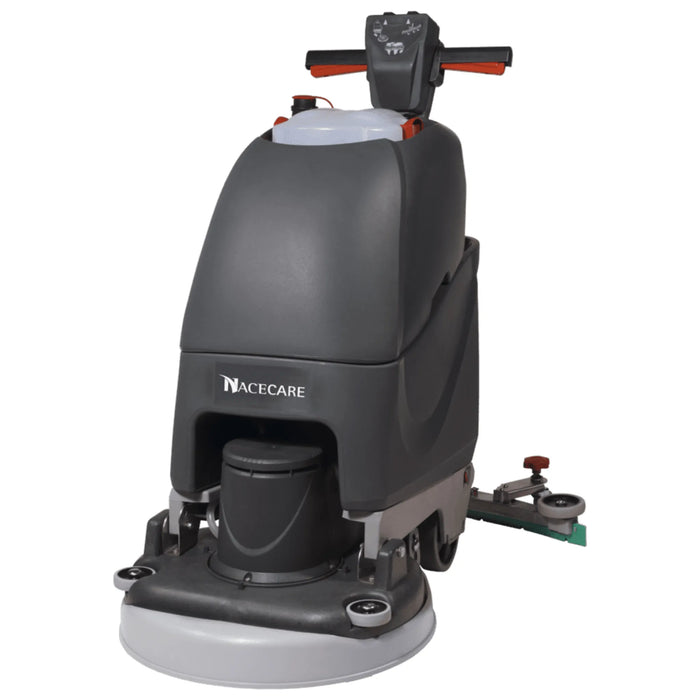

The NaceCare TBL 1120 (part number 904050) is a 20-inch corded pad-assist walk-behind scrubber with 105 lbs of brush pressure at 180 RPM — high enough for both daily scrubbing and floor stripping on a single machine. An 11-gallon solution tank, 11-gallon recovery tank, 100-inch water lift, and 95 CFM airflow pair with a 65-foot power cord to cover 22,000 square feet per hour in industrial, commercial, and institutional facilities without mid-run refills or repositioning for power.

TBL 1120 Brush Pressure, Water Recovery, and Tank Specs

• 105 lb brush pressure at 180 RPM: higher pad pressure than most compact scrubbers (which run 45–75 lbs), enabling the TBL 1120 to strip floor finish with appropriate stripping pads rather than requiring a separate dedicated stripper.
• 11-gal solution / 11-gal recovery tanks: balanced tank size prevents solution running out before recovery fills — a common problem on machines with mismatched tank ratios.
• 100" water lift / 95 CFM vacuum motor: strong vacuum extraction removes solution quickly, leaving floors dry and walk-safe faster.
• 65-ft power cord: covers approximately 1,600–2,000 sq ft working radius from a single outlet without unplugging and repositioning.
• 22,000 sq ft/hr working capacity: production rate consistent with a 20" machine at high brush speed — appropriate for warehouses, manufacturing facilities, and large institutional buildings.
• Stainless steel chassis and brush deck, 10-year warranty: stainless construction resists corrosion from cleaning chemicals and wet environments that degrade powder-coated steel frames over time.

Where the TBL 1120 Outperforms Smaller Compact Scrubbers

The 105 lb brush pressure is the key differentiator between the TBL 1120 and lighter-duty 17"–20" compact scrubbers that typically deliver 45–75 lbs. For facilities that need both daily maintenance scrubbing and periodic floor finish stripping on the same machine, the TBL 1120's higher pad pressure eliminates the need to own a separate floor stripper. The machine breaks down into component sections, making it transportable between floors or buildings without dedicated freight access. In multi-story buildings, this means a single machine can serve an entire facility rather than requiring one per floor.

TBL 1120 Squeegee Design and Serviceability

The semi-parabolic squeegee pivots on turns to maintain blade contact with the floor throughout direction changes, improving water recovery in tight areas. The patented flip-up head design allows brush or pad changes without tools — pulling the head forward exposes the pad driver for a quick swap. An hour meter and power indicator are built in to track machine usage for preventive maintenance scheduling. At 67 dB(A), the TBL 1120 meets noise thresholds for use in occupied institutional and commercial environments.

Documents

Spec Sheet

Manual
