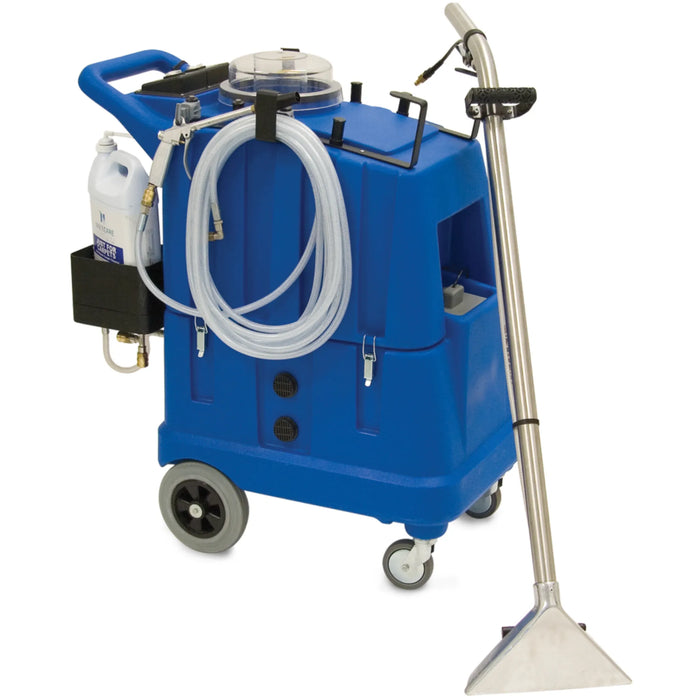

NaceCare TP 18SX Box Carpet Extractor – 1400W, 135" WL, 18-Gal, 20' Hose

NaceCare TP 18SX: High-Capacity Box Extractor for Large Commercial Jobs

The TP 18SX is the largest portable box extractor in the NaceCare range — 18-gallon detachable tanks, 135" of water lift from a 1400W 2-stage motor, and a 130 PSI bypass pump delivering 1.2 GPM through the included 20' hose set and 3-jet stainless steel wand. The two-piece roto-molded polyethylene body separates at the tank joint for transport, and 70 dB(A) operation keeps it usable in occupied large venues like convention centers, hotels, and institutional facilities.

Max Capacity Extraction for Long-Run Jobs

• 1400W 2-stage motor — produces 135" water lift and 95 CFM for thorough carpet moisture recovery
• 130 PSI bypass pump — maintains 1.2 GPM flow through the 20' hose without pressure drop at the wand tip
• 18-gallon tank system — significantly reduces the number of trips to refill or empty during large-area cleaning
• 3-jet stainless steel wand — distributes solution evenly for consistent extraction across wide cleaning strokes
• Optional HT1800 heater — adds hot water extraction capability for heavily soiled traffic lanes

Convention Centers, Hotels, and Large Institutional Spaces

The TP 18SX is the portable extractor of choice for operations where refill trips interrupt productivity: convention center ballrooms being reset between events, hotel corridors being deep-cleaned overnight, and university dormitory common areas being turned over during breaks. The 18-gallon capacity cuts interruptions by roughly half compared to 8-gallon units on the same job. At 92 lbs, it requires a cart or team lift, but the 20' wand reach means the machine itself rarely moves once staged at a room entrance. The 70 dB(A) rating is appropriate for use in occupied facilities.

Specifications

Documents

Spec Sheet · Owner Manual
