Tornado BD 14/4 Compact Scrubber – 99414, 180 RPM, 3.5/4 Gal, 13,342 sq ft/hr

Tornado BD 14/4 Compact Floor Scrubber

The Tornado BD 14/4 (catalog 99414) is the narrowest scrubber in Tornado's BD line, built on a 14-inch cleaning path that fits through interior doorways and around restroom fixtures. A 0.3 HP disc brush spins at 180 RPM and a 0.8 HP vacuum motor pulls water through a 16-inch squeegee, clearing 13,342 sq. ft. per hour. The 3.5-gallon solution and 4-gallon recovery tanks ride on a 24V cordless battery, and at 132 lbs without battery the machine is light enough to move between floors by elevator.

BD 14/4 Specifications

• Catalog number: 99414
• Cleaning path: 14 in
• Productivity: 13,342 sq ft/hr
• Brush type: disc, 180 RPM
• Brush motor: 0.3 HP
• Vacuum motor: 0.8 HP
• Squeegee: 16 in, parabolic
• Solution tank: 3.5 gallons
• Recovery tank: 4 gallons
• Sound level: 69 dB
• Power: 24V battery, AGM, on-board charger
• Weight: 132 lbs (without battery)
• Dimensions: 38×15×36 in

Who the BD 14/4 Is For

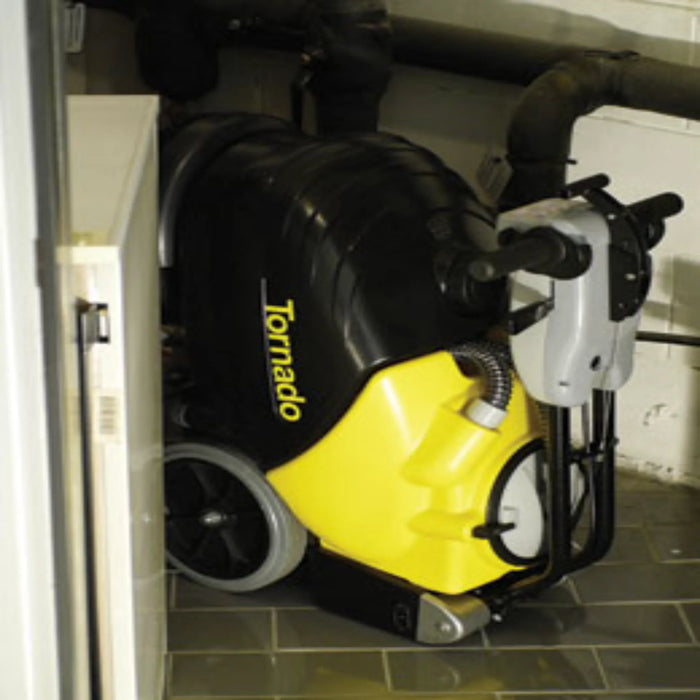

Tight back-of-house areas drive the case for this machine. At 15 inches wide it passes through standard interior doors without angling, reaching under counters and around bathroom fixtures that a mop only smears. Restaurants, retail boutiques, and small medical offices use it where larger walk-behinds simply cannot turn.

How the Brush Deck, Tanks, and Battery Work

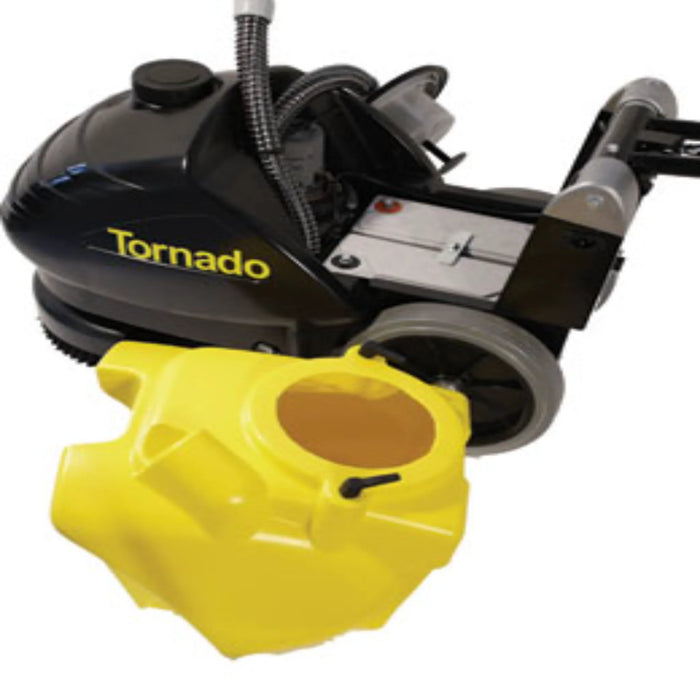

The 0.3 HP disc brush agitates the floor at 180 RPM while the 0.8 HP vacuum draws solution up through the 16-inch squeegee, so the surface is left damp rather than wet. Clean solution holds in the 3.5-gallon tank and recovery water collects in the slightly larger 4-gallon tank.

A 24V AGM battery with on-board charger keeps the unit cordless through a cleaning route and tops up from a wall outlet afterward.
