Summit Appliance 102 Bottle Single-Zone Wine Cellar 23" Wide With Glass Door, Digital Thermostat, And Black Cabinet

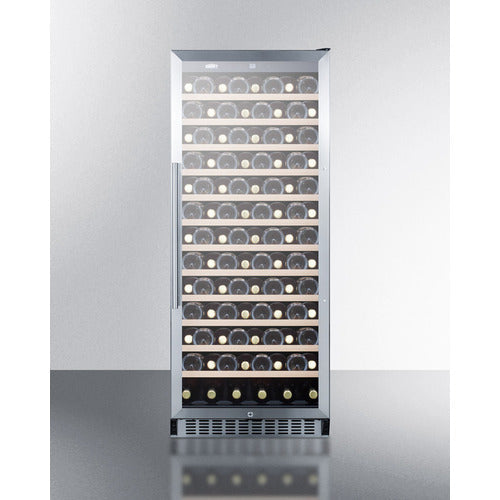

Designed for discerning oenophiles, the Summit SWC1102LHD wine cellar combines functionality with sophisticated aesthetics. This mid-sized unit accommodates 102 bottles on twelve extractable wooden shelves, while recessed LED lighting enhances visual appeal.
The precision digital thermostat maintains optimal storage conditions in the single-zone interior. Its versatile front-breathing design allows for built-in or freestanding installation, featuring a jet black cabinet complemented by a stainless steel-trimmed reversible glass door. Professional details include an elegant handle, stainless steel kick plate, and integrated security lock to safeguard your valuable collection.
FEATURES
Tinted glass provides full view of interior, with a stainless steel trim for added accent
Meets UL-471 commercial standards
Intuitive electronic controls make it easy to manage the internal temperature of your collection
12 wooden wine shelves can hold up to 102 bottles

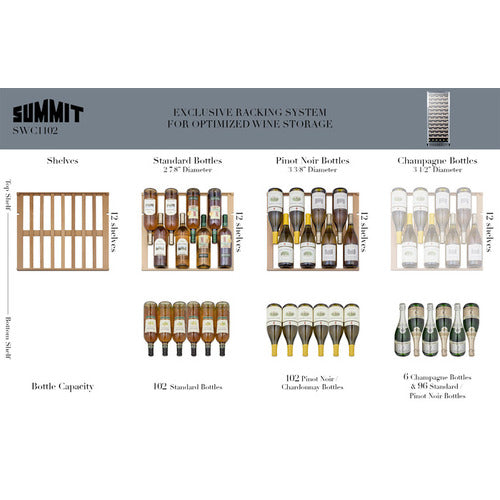

Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Recessed lighting offers an elegant view of your collection
Sleek handle in stainless steel completes the elegant look
Reduced user maintenance with auto defrost operation
Keyed lock for trusted security
User-reversible door swing allows for more flexibility in placing the unit
Matches the handle for an attractive finish
Space saving design with easier cleanability
Allows the unit to be used freestanding
Front-breathing design allows built-in installation
Optional setting lets you disable the lighting and alarm for up to 48 hours
Environmentally safe operation with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 59.0" (150 cm) |
| Height of Cabinet | 58.5" (149 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 44.88" (114 cm) |
| Bottles | 102 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 150.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101101262 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 12 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.66 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 48.75" (124 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door | |
| T4F Door Tint | T3F Door Tint |
| T2F Door Tint | T1SF Door Tint |
| Exterior | |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC1102.pdf |
| TECHNICAL DRAWING (.dwg) | SWC1102WINECELLARA-C2000.dwg |
| REVIT MODEL | QF_Summit_SWC1102_Single_Zone_Commercial_Wine.rfa |
| USE & CARE | ASDW_VC_ALWC_SWC_K_Wine_Cellar_Manual_September_2022.pdf |
| SUPPORT | SWC1102_Shelving_Guide.pdf |
| MSDS INFORMATION | R600a_K.pdf |
