Mi-T-M CBA-4004-1MCM Belt Drive Pressure Washer – 4000 PSI, 420cc OHV

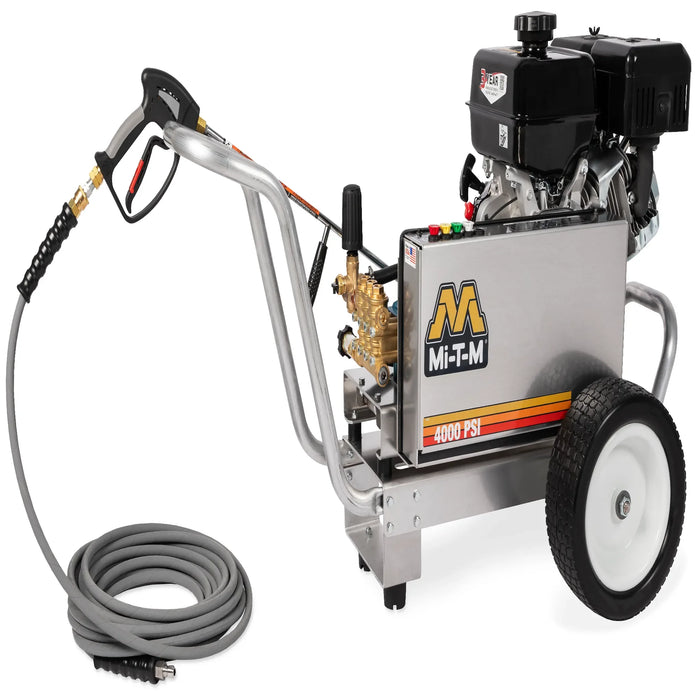

Mi-T-M CBA-4004-1MCM Aluminum Series Belt Drive Pressure Washer
The Mi-T-M CBA-4004-1MCM is a 4,000 PSI / 3.7 GPM gasoline belt-drive pressure washer powered by a 420cc Mi-T-M OHV engine with a CAT triplex pump. The corrosion-resistant aluminum frame with patented vibration isolation plate keeps weight at 156 lbs — identical to the Kohler CH440 variant. External bypass and thermal relief valve protect the pump under continuous duty. 49-state engine; not for sale in California.
CBA-4004-1MCM Mi-T-M OHV Engine and Pump System
- Pressure: 4,000 PSI
- Flow rate: 3.7 GPM
- Engine: 420cc Mi-T-M OHV (49-state)
- Pump: CAT triplex with external bypass, forged brass manifold, thermal relief valve, clear-sleeve water filter
- Unloader: Adjustable pressure
- Lance: 48 in.
- Tires: 13" flat-free
- Included: Quick-connect nozzles (0°, 15°, 25°, 40°), 50 ft non-marking hose, insulated trigger gun
Mi-T-M OHV Engine in Commercial Field Use
The Mi-T-M-branded 420cc OHV engine is built to the same specification as the CH440-equipped variant. The Mi-T-M engine option is commonly chosen by buyers who prefer parts sourcing through a single manufacturer (Mi-T-M) rather than managing separate Kohler and CAT service channels. PSI, GPM, and physical dimensions are identical to the 1MCK model at 156 lbs and 47" × 27.5" × 28.5".
Frame Design and Certification
ETL certified for the US market. Two-piece belt guard for service access. Optional CX-0118 skid feet for stationary mount (must be ordered with unit).
| Model | CBA-4004-1MCM |
| PSI | 4,000 |
| GPM | 3.7 |
| Engine | 420cc Mi-T-M OHV |
| Pump | CAT |
| Unloader | Adjustable Pressure |
| Lance | 48 in. |
| Dimensions | 47" × 27.5" × 28.5" |
| Net Weight | 156 lbs |
| Certification | ETL – US |
Documents: Spec Sheet · Manual
