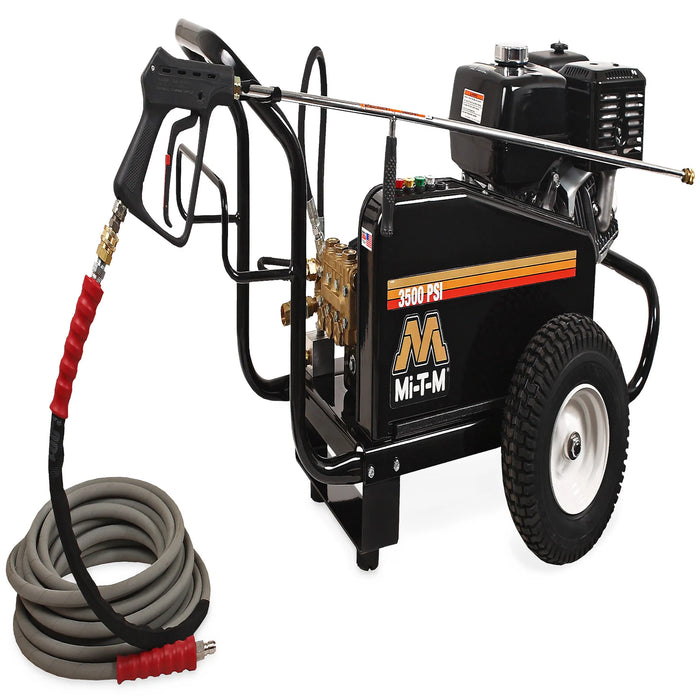

Mi-T-M CW-3504-5MGM Belt Drive Pressure Washer – 3500 PSI, 3.8 GPM, OHV engine
Mi-T-M CW-3504-5MGM: 3500 PSI Belt Drive Pressure Washer with Mi-T-M OHV Powertrain
The Mi-T-M CW-3504-5MGM delivers 3500 PSI at 3.8 GPM through a 420cc Mi-T-M OHV engine and General pump with external bypass in the CW Premium Series chassis. The Mi-T-M OHV powertrain offers single-vendor service coverage for both engine and machine components through the Mi-T-M dealer network, simplifying maintenance for operations that prefer consolidated parts sourcing at the 3500 PSI performance tier.
CW-3504-5MGM Mi-T-M OHV Engine and Pump Configuration
- Mi-T-M OHV 420cc engine — factory-matched to General pump for integrated system testing and single-vendor service coverage
- General pump at 3500 PSI with external bypass — matched configuration across all CW-3504 variants for interchangeable service parts
- Forged brass manifold and thermal relief valve — dual protection layer for sustained high-pressure commercial cycles
- Factory preset unloader at 3500 PSI — consistent pressure output without daily field calibration
- Powder-coated steel frame with 13-inch flat-free tires — commercial-grade mobility across all terrain types
Single-Vendor Service and 3500 PSI Applications
Operations that run multiple Mi-T-M machines and prefer handling all engine parts, pump kits, and service through a single Mi-T-M dealer account find the 4MGM OHV configuration the most operationally efficient. Commercial cleaning companies maintaining building facades, loading docks, and parking structures use 3500 PSI to address embedded dirt and algae growth in a single pass that lower-pressure units cannot achieve. Industrial facilities using the unit for concrete floor maintenance, equipment degreasing, and exterior steel cleaning benefit from the consistent factory preset output across all operating conditions.
Included Kit and Factory Options
Ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Factory options include Dual Lance and Roll Cage. Not for sale in California.
| PSI | 3500 |
|---|---|
| GPM | 3.8 |
| Engine | 420cc Mi-T-M OHV |
| Pump | General |
| Unloader | Mi-T-M Factory Preset |
| Lance Length | 48 in. |
| Net Weight | 216 lbs |
| Shipping Weight | 290 lbs |
| Dimensions (L×W×H) | 46 × 28 × 30 in. |
