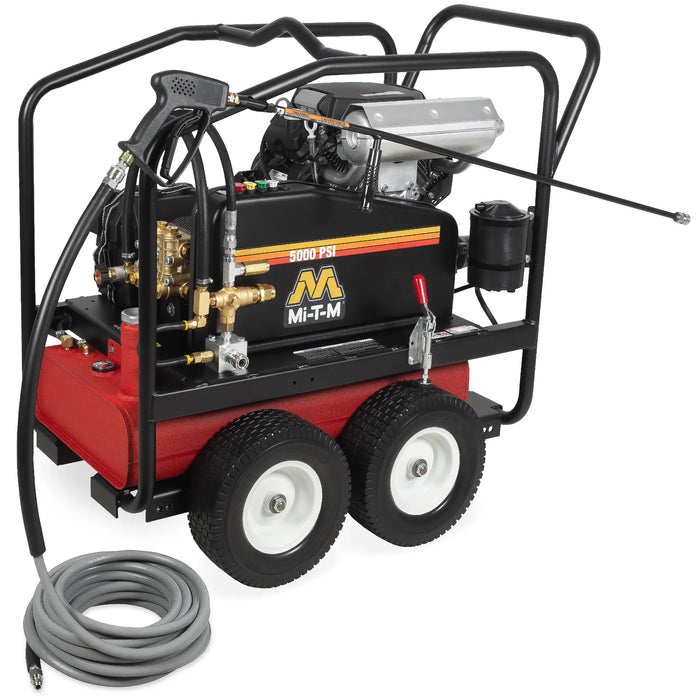

Mi-T-M CWC-5004-4MAM Belt Drive Pressure Washer – 5000 PSI, 670cc OHV, AR
Mi-T-M CWC-5004-4MAM Belt Drive Pressure Washer – 5000 PSI, Mi-T-M 670cc
The Mi-T-M CWC-5004-4MAM delivers 5,000 PSI at 4.0 GPM via a 670cc Mi-T-M OHV engine and an AR triplex pump. Powder-coated steel roll cage with lifting hook. Electric start with sealed battery. 13-gallon fuel tank with aluminized interior for corrosion resistance and up to 9.5 hours runtime. Factory-preset unloader. Weight: 433 lbs. Not confirmed 49-state; consult factory for California compliance.
CWC-5004-4MAM Mi-T-M 670cc Engine and AR Pump
- Pressure: 5,000 PSI
- Flow rate: 4.0 GPM
- Engine: 670cc Mi-T-M OHV, electric start, sealed battery
- Pump: AR triplex with external bypass, forged brass manifold, thermal and safety relief valves, clear-sleeve water filter
- Unloader: Factory preset
- Fuel tank: 13 gallon, aluminized interior
- Lance: 48 in.
- Hose: 50 ft × 3/8"
- Tires: 13" flat-free with locking brake
Mi-T-M 670cc Engine in CWC Platform
The 670cc Mi-T-M OHV engine provides the same 5,000 PSI / 4.0 GPM output as the Honda GX630-powered variants at identical weight (433 lbs). The Mi-T-M engine choice consolidates parts sourcing through a single vendor for operations already using Mi-T-M equipment and service channels. The AR pump matches the MAH model's pump type, making the MAM the Mi-T-M-engine equivalent of the Honda-powered MAH.
Frame and Optional Accessories
Optional CX-0118 skid feet for stationary installation (must be ordered with unit). Net weight: 433 lbs. Dimensions: 43" × 27.75" × 38.5".
| Model | CWC-5004-4MAM |
| PSI | 5,000 |
| GPM | 4.0 |
| Engine | 670cc Mi-T-M OHV, electric start |
| Pump | AR |
| Unloader | Factory Preset |
| Fuel Tank | 13 gallon, aluminized interior |
| Hose | 50 ft × 3/8" |
| Lance | 48 in. |
| Dimensions | 43" × 27.75" × 38.5" |
| Net Weight | 433 lbs |
Documents: Spec Sheet · Manual
