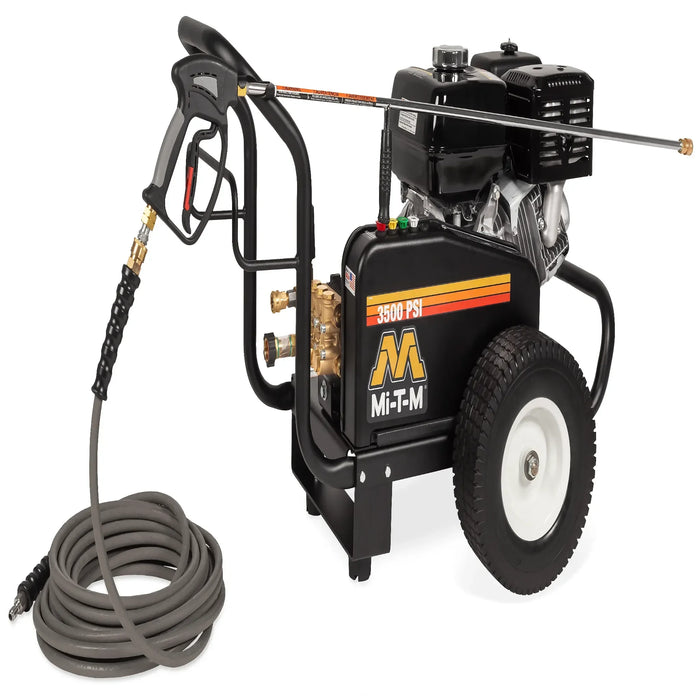

Mi-T-M JCW-3504-2MHB Belt Drive Pressure Washer – 3500 PSI, 3.7 GPM, Honda GX390
Mi-T-M JCW-3504-2MHB Belt Drive Pressure Washer: 3500 PSI, Honda-Powered for Jobsite Cleaning
The Mi-T-M JCW-3504-2MHB is a gasoline belt-drive pressure washer producing 3500 PSI at 3.7 GPM through a Honda GX390 OHV 389cc engine and an AR pump with Mi-T-M Pressure Relief Start. Its powder-coated steel frame with enclosed two-piece belt guard and 13-inch flat-free tires make it a go-anywhere unit built for agriculture, construction, and fleet maintenance operations.
JCW-3504-2MHB Pump and Drive System
- AR pump with forged brass manifold — handles continuous high-pressure output without thermal fatigue
- Thermal relief valve and clear-sleeve water filter — stops heat buildup and allows inline inspection without tools
- Mi-T-M Pressure Relief Start — reduces pull-cord resistance and extends pump life between service intervals
- Belt drive system with enclosed two-piece guard — absorbs shock loads to deliver smooth torque at the pump shaft
- Factory-optional CX-0082 / CX-0085 external bypass — ordered at factory for operations with frequent trigger-off intervals
Jobsite Environments Suited for the JCW-3504-2MHB
Agricultural facilities running livestock equipment, combine cleanout, or post-harvest barn washdowns benefit from the 3500 PSI output and portable 195 lb frame that moves on 13-inch flat-free tires without needing flat repairs mid-shift. Construction contractors cleaning concrete forms, scaffolding, and heavy equipment between pours rely on the Honda GX390 for consistent restarts in dusty site conditions. Fleet washing operations with multiple vehicles per shift can pair the unit with a 200-gallon trailer tank using the 3/4-inch barb inlet. The 50-foot x 3/8-inch non-marking hose and 48-inch lance keep operators away from spray rebound on all four nozzle angles (0°, 15°, 25°, 40°).
Regulatory Compliance and Included Kit
This model is not for sale in California; gasoline-powered Mi-T-M washers sold in California require CARB-compliant engines available through separate models. The JCW-3504-2MHB ships with quick-connect nozzle set (0°, 15°, 25°, 40°), one 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun rated for the operating pressure. Spec Sheet and Operator Manual are available below.
| PSI | 3500 |
|---|---|
| GPM | 3.7 |
| Engine | 389cc Honda GX390 OHV |
| Pump | AR |
| Unloader | Mi-T-M Adjustable Pressure |
| Lance Length | 48 in. |
| Net Weight | 195 lbs |
| Shipping Weight | 249 lbs |
| Dimensions (L×W×H) | 39.5 × 28.5 × 26 in. |
