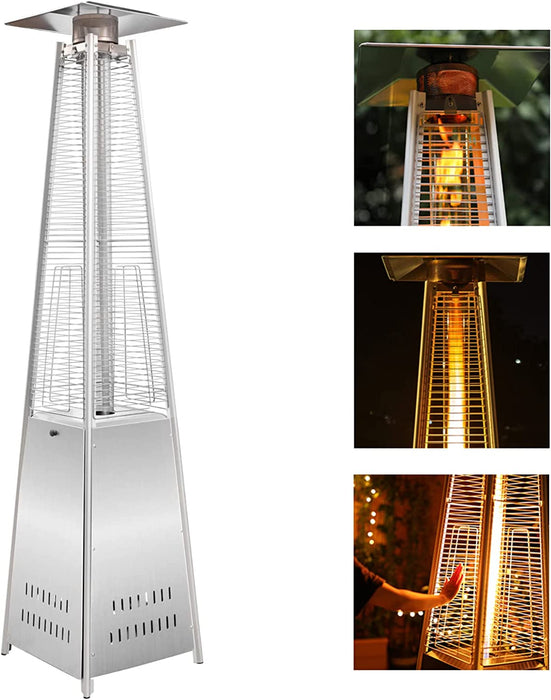

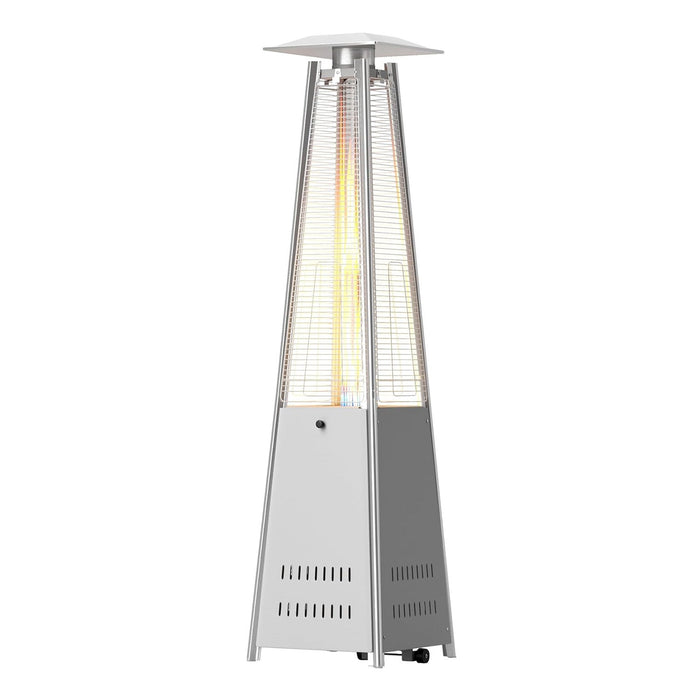

Our Bosonshop Outdoor Patio Heater Heating is a good choice for outdoor use, but not indoor use.
Features:
- Heating Area: 42,000 BTU burner heats up to 200 sq ft, the heat is transferred upward through the explosion-proof glass tube and radiated by the top reflector, heating up quickly and smoothly.
- Applicable: Suitable for 20lbs standard propane cylinder tank (tank not included), gas type: propane, butane, and mixtures (LPG), this heater is best used with propane gas.

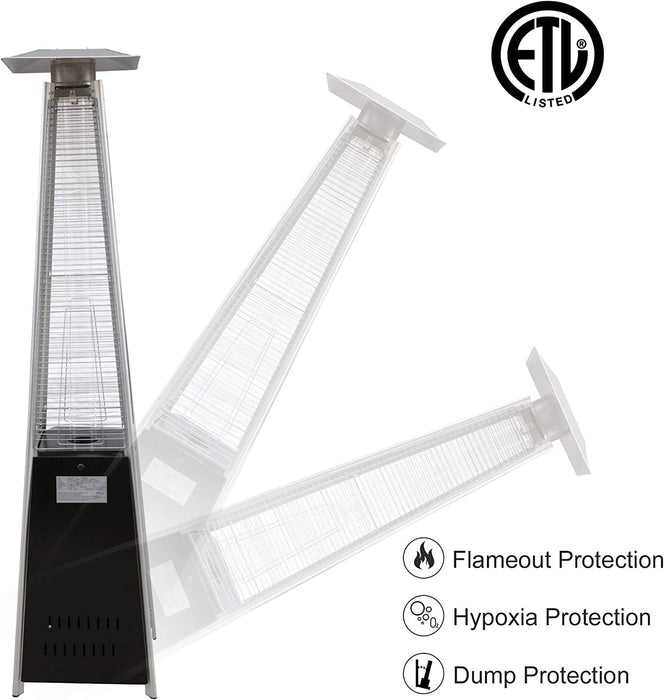

- Safety & Certified: The heater adopts an anti-tilting design and has an automatic closing device, the pyramid-shaped design is more stable. This heater is certificated by CE and ETL.
- Adjustable Heat: Ignition method: pulse ignition, power range: 5-13KW, can meet different heating needs, equipped with wheels, it can move to the required position at will.
- Assembly: Pyramid heaters require two people to assemble, and gloves are required to prevent accidents during installation. Be sure to read the installation instructions before installation.

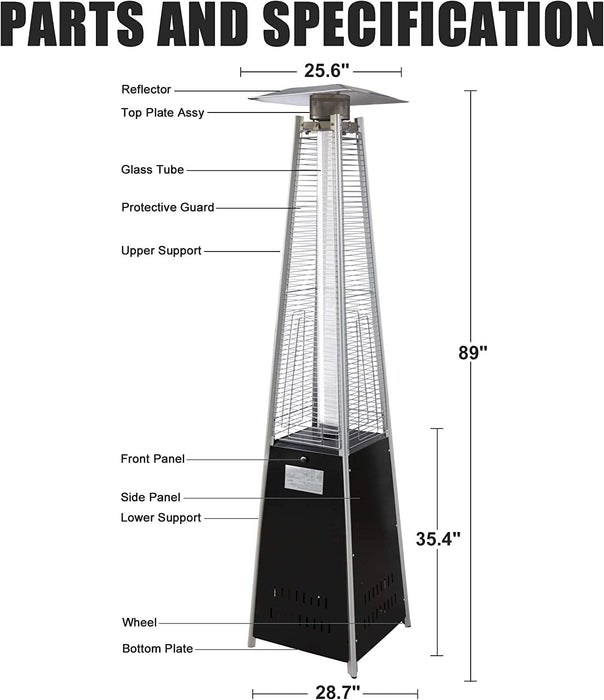

Specification:
Power Source: Gas Powered
Heating Method: Radiant
Heat Output: 42000 BTU
Material: Stainless Steel, Glass, Aluminum
Power Source: Propane
Overall Height: 89 Inch
Heat Range: 20 Feet Diameter
Propane Tank Type: 20lbs propane cylinder tank(Not Include)
Product Description
- Ensure the variable control knob is at the OFF position.
- Connect the gas regulator to a compatible gas cylinder.
- Push and turn the variable control knob to the "Pilot " position and hold for 60 seconds. While holding down the control knob, press the ignition button. A pilot flame should appear.
- Once the blue pilot flame stays alight constantly, release the variable knob.
- Turn the variable control knob to the desired temperature position – Lo to Hi.
Notice:
When lighting the heater for the first time or a new cylinder is connected, the air inside the hose must be purged. This process will take a few minutes as liquefied petroleum gas is heavier than air.
- As a result, the variable control knob should be pressed down at the Pilot position for 3 Minutes instead of the normal 60 second period.
- This ensures the gas purges the air in the hose and passes from the cylinder through to the main burner.
Turn off the heater
- Turn the variable control to the PILOT position.
- Push and turn the variable control knob to the OFF position.
- Turn the regulator connected to the gas cylinder to the OFF position.
Note:
- Prohibit the use of outdoor heaters indoors.
- The heater is prohibited from being moved while working.
- Turn off the gas cylinder valve when the heater is not in use.
- Do not touch or move the heater for at least 45 minutes after use.
- Before use, use liquid soap to check for air leakage (flame detection is prohibited).
-
It is forbidden to store gasoline and other flammable and explosive gases and liquids around the heater.

|

|

|

|

|

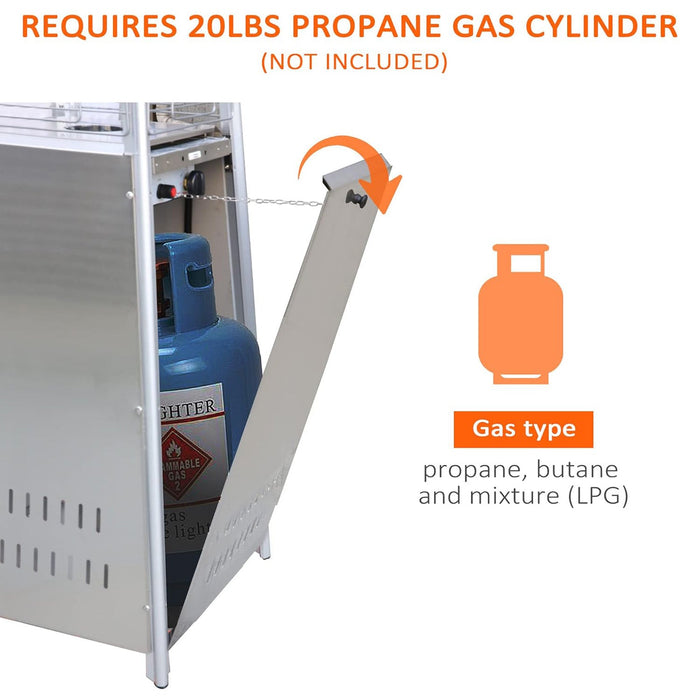

Chain
The front panel design with chain makes it easy to open and close the panel when you need to operate the tank
|

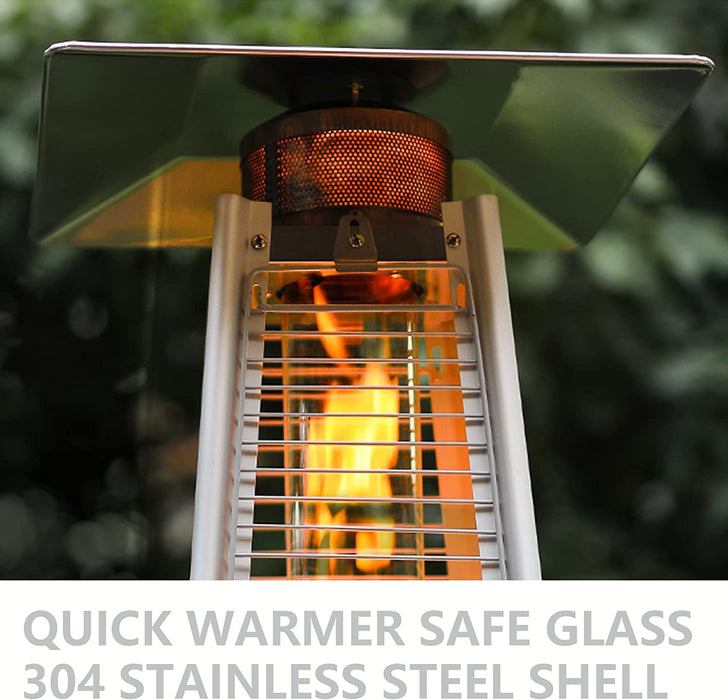

High Temperature Resistance
Use low thermal expansion coefficient heat-resistant glass tube to ensure the safety of the use process
|
Wheels
Equipped with wheels, it is flexible to use and can be moved to various places at will
|

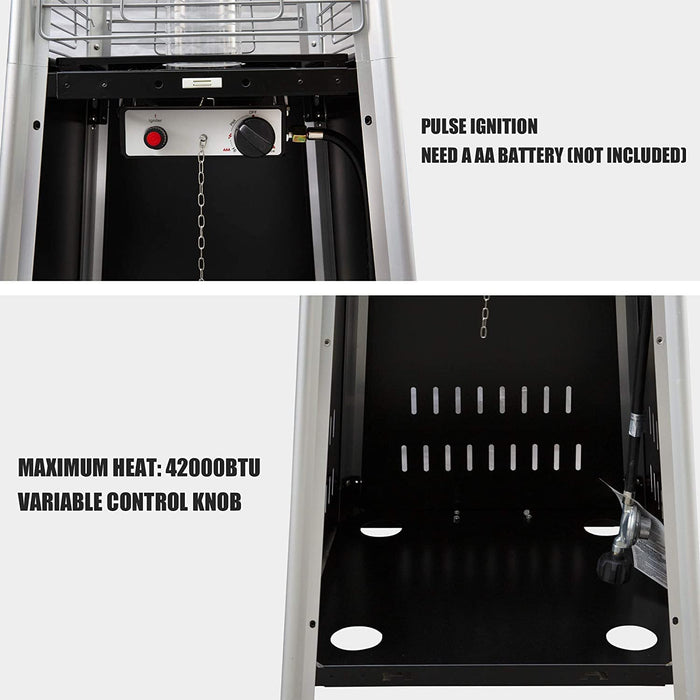

Pulse Ignition
Pulse ignition is used to improve ignition accuracy and make it more convenient to use
|
