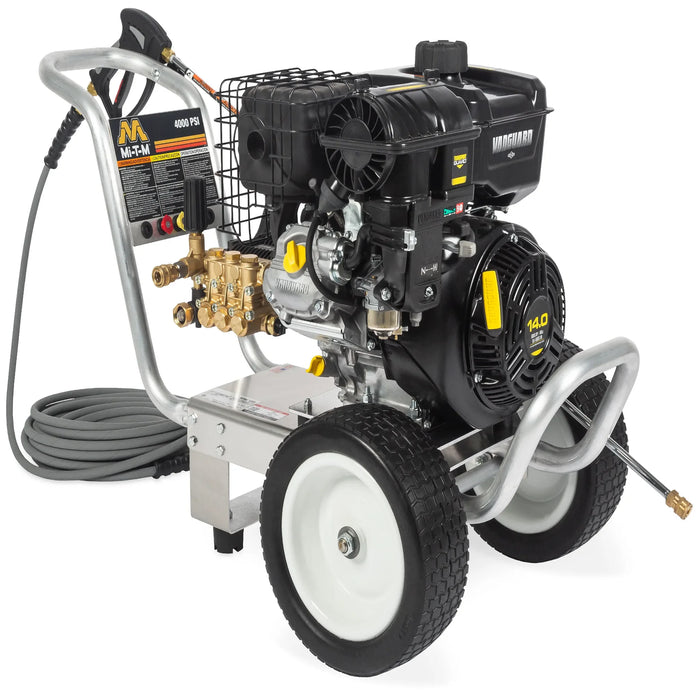

Mi-T-M CA-4004-1MAV Aluminum Pressure Washer – 4000 PSI, 3.5 GPM, Vanguard OHV
CA-4004-1MAV Gas Pressure Washer — CA Aluminum Series 4000 PSI with Vanguard OHV
The CA-4004-1MAV produces 4000 PSI at 3.5 GPM — 14,000 cleaning units — from a 408cc Briggs and Stratton Vanguard OHV engine paired with an AR crankshaft pump on Mi-T-M's 125-lb aluminum frame. It is one of four engine variants on the CA-4004 standard frame alongside Honda GX390 (1MAH), Kohler CH440 (1MAK), and Mi-T-M OHV (1MAM). The Vanguard is the choice for operations already running Briggs and Stratton Vanguard engines in generators, turf equipment, or other commercial machinery — consolidating parts and service across a Vanguard-engine fleet.
CA-4004-1MAV Engine Platform and 4000 PSI Output
The 408cc Vanguard OHV uses a cast-iron cylinder sleeve, overhead valve configuration, and pressure-lubricated main bearings — construction features consistent with Vanguard's commercial-duty engine line. At 14,000 CU the CA-4004 handles dense industrial fouling, coating stripping, and large-fleet washing that the CA-3504 (12,250 CU) addresses less efficiently. The 125-lb aluminum frame is approximately 17 lbs lighter than the steel-frame JP-4004 at the same CU output.
- 4000 PSI at 3.5 GPM (14,000 CU) — maximum standard output on the CA aluminum frame; handles coating prep, dense industrial fouling, and heavy fleet washing
- 408cc Vanguard OHV engine — commercial-duty construction; cast-iron sleeve, pressure-lubricated bearings; Briggs and Stratton Vanguard dealer network
- AR crankshaft pump, forged brass manifold, thermal relief valve — AR rated for sustained 4000 PSI; brass handles mineral water; thermal valve protects pump during idle
- 125-lb corrosion-resistant aluminum frame, 13-in flat-free tires — lighter than steel-frame alternatives at this CU level; rust-resistant outdoor storage
- Vibration isolation plate, 50-ft hose, 48-in lance — vibration dampening extends seal life; 48-in lance for elevated and large-equipment cleaning
- CX-0098 External Bypass available — must be ordered with unit; prevents AR pump heat build-up during trigger-closed idle at 4000 PSI
CA-4004-1MAV Applications and Environments
Facilities and contractors operating Vanguard-powered generators, line stripers, or commercial turf equipment add the CA-4004-1MAV to unify their engine platform: one parts supplier, one oil specification, and shared technician knowledge across all Vanguard-powered equipment. Industrial cleaning operations use the 14,000 CU output for machinery with accumulated heavy fouling from oils, cutting fluids, and process residues. Fleet operators washing heavy commercial vehicles benefit from the 4000 PSI effectiveness on dense road contamination. The aluminum frame keeps the unit at 125 lbs — manageable for solo operators moving between cleaning stations at large facilities.
CA-4004-1MAV GPM, PSI, and Nozzle Configuration
Rated at 3.5 GPM at 4000 PSI (14,000 cleaning units) at rated flow. Includes quick-connect nozzles in 0°, 15°, and 25° patterns; 50-ft × 3/8-in non-marking high-pressure hose; 48-in lance with insulated trigger gun. Cold water only. 49-state engine — not for sale in California.
Specifications
| PSI | 4000 PSI at rated flow |
| GPM | 3.5 GPM |
| Cleaning Units | 14,000 CU (PSI × GPM) |
| Engine | 408cc Vanguard OHV |
| Pump Type | AR Crankshaft |
| Unloader | Mi-T-M Adjustable Pressure |
| Hose | 50 ft × 3/8 in non-marking |
| Lance | 48 in |
| Nozzles Included | 0°, 15°, 25° quick-connect |
| Net Weight | 125 lbs |
| Dimensions (L × W × H) | 42.5 × 23.5 × 24.5 in |
| Hot/Cold | Cold water only |
| California Sale | Not for sale in CA (49-state engine) |
