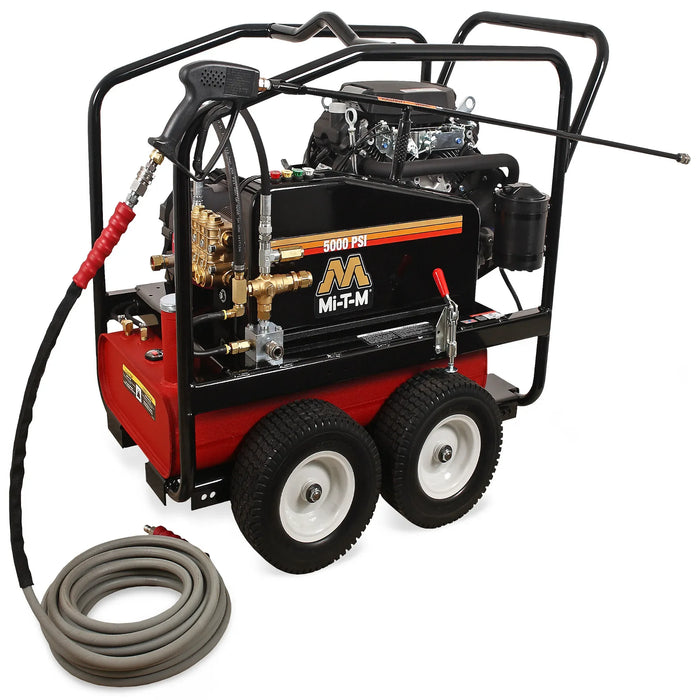

Mi-T-M CWC-5004-4MAV Belt Drive Pressure Washer – 5000 PSI, Vanguard 627cc, AR
Mi-T-M CWC-5004-4MAV Belt Drive Pressure Washer – 5000 PSI, Vanguard 627cc
The Mi-T-M CWC-5004-4MAV delivers 5,000 PSI at 4.0 GPM via a 627cc Vanguard OHV engine and an AR triplex pump. Powder-coated steel roll cage with lifting hook. Electric start with sealed battery. 13-gallon fuel tank with aluminized interior for up to 9.5 hours runtime. Factory-preset unloader. Weight: 433 lbs. Consult factory for California compliance.
CWC-5004-4MAV Vanguard Engine and AR Pump
- Pressure: 5,000 PSI
- Flow rate: 4.0 GPM
- Engine: 627cc Vanguard OHV, electric start, sealed battery
- Pump: AR triplex with external bypass, forged brass manifold, thermal and safety relief valves, clear-sleeve water filter
- Unloader: Factory preset
- Fuel tank: 13 gallon, aluminized interior (up to 9.5 hr)
- Lance: 48 in.
- Hose: 50 ft × 3/8"
- Tires: 13" flat-free with locking brake
Vanguard Engine Selection in Commercial Pressure Washers
Vanguard engines (a Briggs & Stratton commercial engine brand) are preferred by operators with established Briggs commercial service relationships. The 627cc Vanguard OHV produces the same 5,000 PSI / 4.0 GPM output as the Honda GX630 and Mi-T-M 670cc variants. The MAV is the Vanguard-engine equivalent of the MAH (Honda) and MAM (Mi-T-M) in the 5,000 PSI AR-pump CWC lineup. All three share 433 lb weight and identical frame dimensions.
Frame and Accessories
Optional CX-0118 skid feet for stationary installations (must be ordered with unit). Net weight: 433 lbs. Dimensions: 43" × 27.75" × 38.5".
| Model | CWC-5004-4MAV |
| PSI | 5,000 |
| GPM | 4.0 |
| Engine | 627cc Vanguard OHV, electric start |
| Pump | AR |
| Unloader | Factory Preset |
| Fuel Tank | 13 gallon, aluminized interior |
| Hose | 50 ft × 3/8" |
| Lance | 48 in. |
| Dimensions | 43" × 27.75" × 38.5" |
| Net Weight | 433 lbs |
Documents: Spec Sheet · Manual
