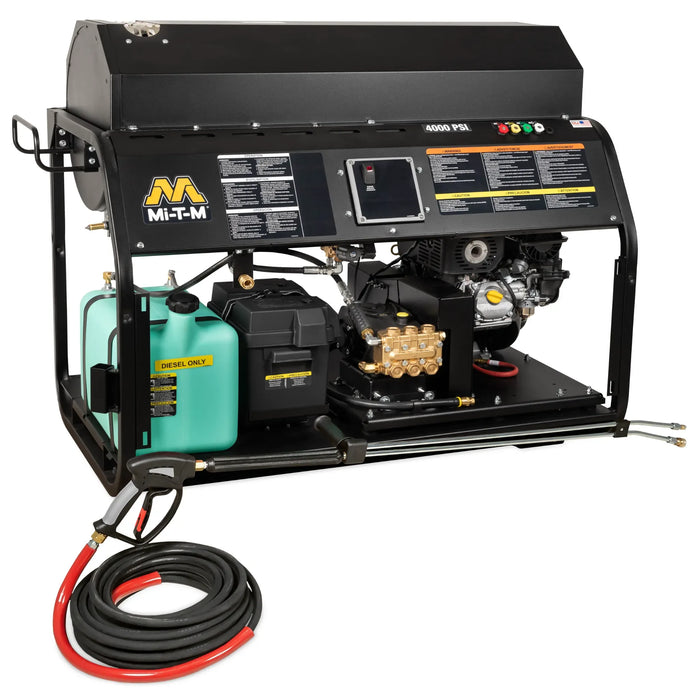

Mi-T-M HS-4004-0MGV Hot Water Pressure Washer – 4000 PSI, 3.7 GPM

Mi-T-M HS-4004-0MGV Hot Water Pressure Washer – 4000 PSI, Vanguard

The Mi-T-M HS-4004-0MGV is a skid-mounted hot water pressure washer delivering 4000 PSI at 3.7 GPM, powered by a 408cc Vanguard OHV engine with a General belt-drive pump. The burner produces 386,400 BTU/hr with a 150°F temperature rise to 200°F max outlet. Weighing 587 lbs at 53" × 28.5" × 42", it is the lightest unit in the 4000 PSI HS Series — practical for truck-bed mounting where payload limits matter. Generator-equipped with 2900W for remote site operation.

Engine, Pump, and Heating

• Pressure: 4000 PSI at 3.7 GPM — effective for fleet washing, equipment degreasing, and construction site cleanup.
• Engine: 408cc Vanguard OHV — electric start; 1.51-gallon engine fuel tank (smaller than Honda/Kohler models).
• Heat: 386,400 BTU/hr, 200°F max — 150°F rise above ambient; 10.0-gallon burner tank at 2.76 gph.
• Pump: General belt-drive — external bypass, factory-preset unloader, forged brass manifold.
• Generator: 2900W — onboard electrical power for accessories at remote locations.
• Weight: 587 lbs — lightest 4000 PSI HS Series model; practical for standard pickup truck payload ratings.

Applications and Optional Accessories

At 587 lbs the HS-4004-0MGV is typically truck-bed mounted rather than trailer mounted where weight constraints apply. Included: quick-connect nozzles (0°, 15°, 25°, 40°), 50-ft steel wire-braided hose, adjustable dual lance with trigger gun. Optional at order time: HX-0146 Hour Meter. CARB compliance required for California — consult factory. Bio-fuel not approved for burner.

Specifications

Documents

Spec Sheet

Manual
