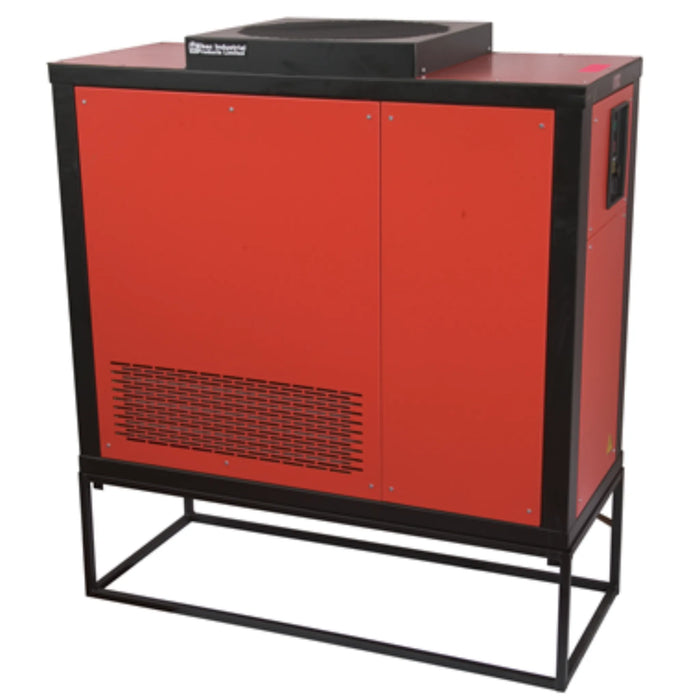

Ebac CD425-D HVAC Dehumidifier – Model 10140BR-US (220V, 3-Phase, Gravity Drain)
The Ebac CD425-D (10140BR-US) is the 220V, gravity-drain configuration of the CD425-D refrigerant HVAC dehumidifier. Drawing 16A at 220V for 3.6 kW, it delivers 285 PPD extraction and 1,750 CFM airflow, reverse-cycle defrost to 33°F, and digital humidistat control — all identical to the other CD425-D variants. Without an internal pump, condensate drains by gravity, which requires a floor drain directly accessible below the unit. This is the simplest CD425-D configuration: fewer mechanical components, lower acquisition cost, and no pump maintenance.
CD425-D 10140BR-US – Key Specifications and Features
-
Model: 10140BR-US (CD425-D, 220V 3-phase, gravity drain)
-
Extraction rate: 285 PPD
-
Airflow: 1,750 CFM
-
Electrical: 220V, 3-phase, 60 Hz, 16A, 3.6 kW
-
Defrost system: reverse-cycle defrost
-
Operating temperature: 33°F to 95°F
-
Effective volume: 52,970 ft³
-
Condensate removal: gravity drain (no internal pump)
-
Control: digital adjustable humidistat
-
Construction: welded steel chassis, baked epoxy and vinyl coating
-
Dimensions: 43" W × 19" D × 47" H
-
Weight: 353 lbs
Where the CD425-D 10140BR-US Performs
International and older North American industrial facilities with 220V 3-phase distribution and proper floor drain infrastructure use the 10140BR-US as the most straightforward CD425-D installation. Warehouses designed with trench drains running beneath equipment positions and facilities where building codes specify gravity drainage for condensate systems are the primary environments. The absence of a pump means one fewer electrical component and eliminates condensate pump service intervals, which matters in facilities with infrequent maintenance schedules.
Selecting the Right CD425-D Configuration
220V with pump (10147BR-US) suits sites with 220V power and no nearby floor drain. 220V gravity drain (10140BR-US) suits sites with 220V power and accessible floor drainage. 460V with pump (10149BR-US) suits sites with 460V power and no nearby drain. 460V gravity drain (10148BR-US) suits sites with 460V power and accessible floor drainage. All configurations deliver 285 PPD at 1,750 CFM.
| Model |
10140BR-US |
| Extraction Rate |
285 PPD |
| Airflow |
1,750 CFM |
| Electrical |
220V, 3-phase, 16A, 3.6 kW |
| Min Operating Temp |
33°F |
| Max Operating Temp |
95°F |
| Effective Volume |
52,970 ft³ |
| Condensate |
Gravity drain |
| Dimensions |
43" W × 19" D × 47" H |
| Weight |
353 lbs |
