Mi-T-M ABS-14M-B Base-Mount Two-Stage Gasoline Air Compressor – 29 CFM @ 175 PSI, 420cc OHV
Mi-T-M ABS-14M-B Two-Stage Gasoline Compressor for Service Truck Installations

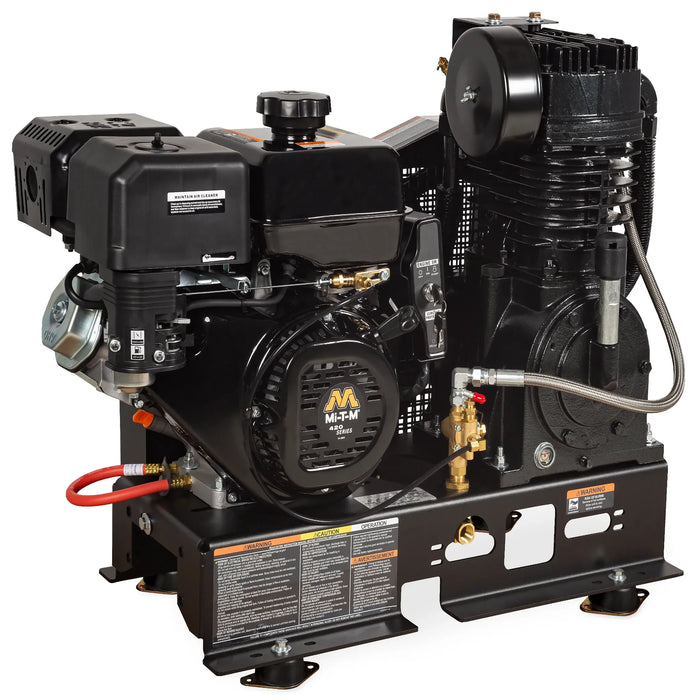

The Mi-T-M ABS-14M-B is a base-mount, two-stage gasoline air compressor delivering 29.0 CFM @ 175 PSI through a 420cc Mi-T-M OHV engine. At 215 lbs net weight (279 lbs shipping), it integrates into custom trailer and service truck builds without the footprint of a tanked unit. A receiver tank is required for system completion and sold separately.
Cast Iron Pump and Pneumatic Idle Control on the ABS-14M-B
- Two-stage cast iron pump — delivers 29.0 CFM at 175 PSI with reduced heat versus single-stage designs
- Pneumatic idle control — throttles engine down at pressure, reducing fuel consumption and extending engine life
- Stainless-steel braided discharge hose — rated for sustained high-pressure output without cracking
- Large canister intake filter — protects pump internals and maintains clean air delivery
- 3/16-inch vibration-reducing base plate — dampens mechanical vibration during operation on truck beds
- Start/stop control set at 145–175 PSI — auto-cycles without manual adjustment between jobs
- Powder-coated two-piece belt guard — resists corrosion and simplifies belt inspection without tools
Applications: Service Trucks, Trailer Rigs, and Mobile Contractors
The ABS-14M-B is designed for operators who build out service trucks, lube trucks, and trailer-mounted air systems. Utility contractors use it to run pneumatic impact tools at remote sites; fire departments and municipalities mount it in work vehicles for tire inflation and equipment operation; HVAC and refrigeration contractors rely on base-mount configurations where floor space is limited. The base-mount form factor also suits enclosed trailer spray rigs and construction fleet maintenance units.
What Ships, Certifications, and Optional Upgrades
The compressor ships without a receiver tank, battery, or electric start assembly — all sold separately. Optional upgrades include the AX-0017 Electric Start (sealed battery, tray, box, and cables), AX-0077 Battery Box/Tray, and AX-0101 Remote Start/Choke for cab-controlled starting. An oil level sight indicator and manual tank drain valve are included. No Xactimate code applies to air compressors.
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Engine | 420cc Mi-T-M OHV |
| Tank | Base-Mount (receiver sold separately) |
| Idle Control | Pneumatic |
| Net Weight | 215 lbs |
| Dimensions (L×W×H) | 36.50 × 19.00 × 28.00 in |
