Mi-T-M AM2-SH09-30M 30-Gal Two-Stage Gasoline Air Compressor – 17.2 CFM, Honda GX270

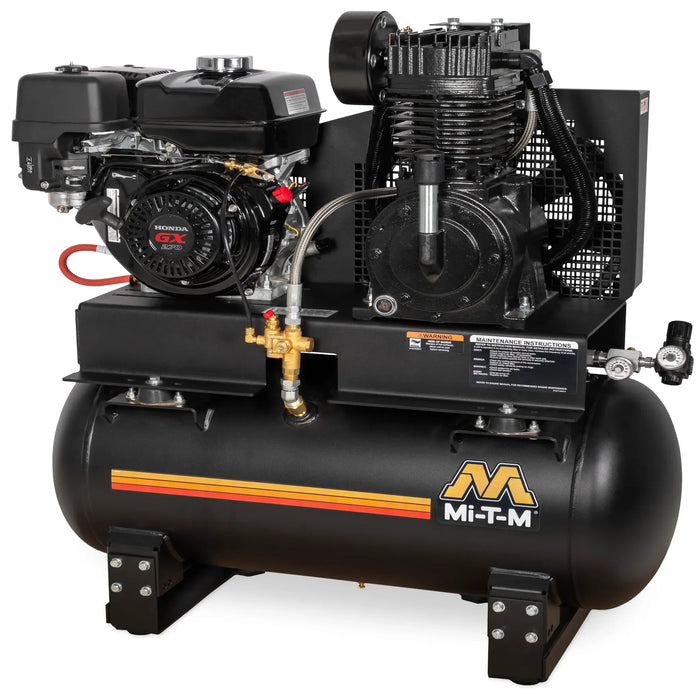

Mi-T-M AM2-SH09-30M: 30-Gallon Two-Stage Gasoline Compressor with Honda GX270
The Mi-T-M AM2-SH09-30M pairs a two-stage cast iron compressor pump with a 270cc Honda GX270 OHV engine, producing 17.2 CFM at 175 PSI from a 30-gallon ASME powder-coated receiver tank. Weighing 376 lbs (446 lbs shipping), it is sized for fixed shop installations and job-site stations that need a self-contained tanked unit.
Two-Stage Cast Iron Pump and Honda GX270 Performance
- Honda GX270 OHV engine — 270cc displacement with a proven low-maintenance service record across commercial equipment
- 17.2 CFM @ 175 PSI — sufficient for sustained operation of grinders, spray guns, and multi-tool setups
- Two-stage cast iron pump — inter-stage cooling reduces outlet temperature, extending pump life
- 30-gallon ASME powder-coated tank — corrosion-resistant with a manual drain valve to clear condensate
- Pneumatic idle control — reduces engine RPM at full pressure to lower fuel burn
- Stainless-steel braided discharge hose — handles sustained 175 PSI output without degradation
- Oil level sight indicator — visible without tools for rapid pre-shift maintenance checks
Where the AM2-SH09-30M Works: Auto, Fabrication, and Field Contracting
Auto body shops and mechanical garages rely on this unit to run DA sanders, impact guns, and blow guns from a centrally positioned tank. Metal fabricators and welders use it to power plasma cutters and pneumatic clamps. Painting contractors appreciate the 30-gallon reserve for sustained spray gun operation without pressure drop. Construction crews position it at job-site stations to service framing, finish nailing, and roofing tools across a crew.
Shipping Contents and Optional Upgrades
The AM2-SH09-30M ships as a complete unit with engine, pump, and ASME tank. The optional AX-0003 Manual Drain/Regulator/Metal Bowl upgrade adds inline moisture protection. No electric start is included on the -30M variant; a separate electric start kit is available for the -30ME model.
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Engine | 270cc Honda GX270 OHV |
| Tank Size | 30 gallons (ASME) |
| Idle Control | Pneumatic |
| Net Weight | 376 lbs |
| Dimensions (L×W×H) | 40.50 × 17.50 × 44.50 in |
