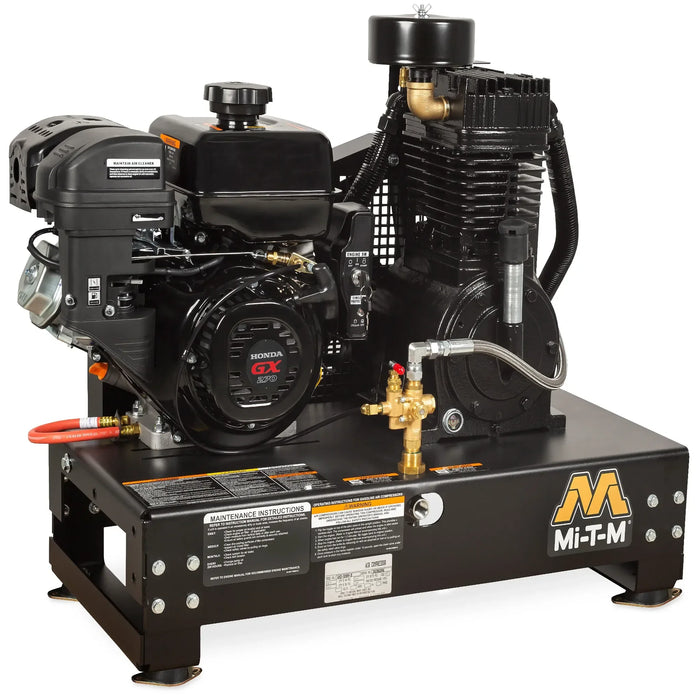

The Mi-T-M AM2-SH09-B delivers 17.2 CFM at 175 PSI through a 270cc Honda GX270 OHV engine on a base-mount frame — no receiver tank included. Weighing 309 lbs net (379 lbs shipping), it is the Honda-engined counterpart to the Mi-T-M OHV base-mount models, suited for trailer installations and service truck skids where a separate ASME tank is already mounted or specified.
Honda GX270 Engine, Base-Mount Frame, and Pump Specs
Honda GX270 OHV engine — 270cc displacement with Honda commercial engine warranty and global parts availability
17.2 CFM @ 175 PSI — two-stage output consistent with shop compressor demands for impact tools and spray equipment
Base-mount form factor — 36.50 × 21.00 × 32.00 in (L×W×H), low-profile for tight installations
Cast iron two-stage pump — splash lubricated with oil sight indicator for fast maintenance checks
Stainless-steel braided discharge hose — rated for sustained high-pressure cycling without abrasion
Pneumatic idle control — throttles engine at 145 PSI to reduce fuel consumption during pressure hold
150-PSI rated regulator — downstream pressure setting independent of tank pressure cycling
Service Truck Builders and Trailer Riggers Using the AM2-SH09-B
Utility contractors building skid-mounted air systems on flatbed trucks specify the AM2-SH09-B with a separately sourced ASME tank matched to their tool demand. Aerial lift operators use base-mount compressors to power hydraulic assist systems and pneumatic tools from a common trailer skid. Fire apparatus fabricators integrate base-mount units into rescue vehicles where a tanked vertical compressor would exceed height clearances. Environmental contractors building decontamination trailers pair this unit with a remote-mounted storage tank.
Receiver Tank Requirement, Optional Upgrades, and Documents
A receiver tank is required and sold separately. Optional upgrades include the AX-0017 Electric Start kit (battery, tray, box, and cables), AX-0077 Battery Box/Tray, and AX-0103 Remote Start/Choke with 7-foot sealed cable for remote key-switch activation.
The Mi-T-M AM2-SH09-B delivers 17.2 CFM at 175 PSI through a 270cc Honda GX270 OHV engine on a base-mount frame — no receiver tank included. Weighing 309 lbs net (379 lbs shipping), it is the Honda-engined counterpart to the Mi-T-M OHV base-mount models, suited for trailer installations and service truck skids where a separate ASME tank is already mounted or specified.
Honda GX270 Engine, Base-Mount Frame, and Pump Specs
Honda GX270 OHV engine — 270cc displacement with Honda commercial engine warranty and global parts availability
17.2 CFM @ 175 PSI — two-stage output consistent with shop compressor demands for impact tools and spray equipment
Base-mount form factor — 36.50 × 21.00 × 32.00 in (L×W×H), low-profile for tight installations
Cast iron two-stage pump — splash lubricated with oil sight indicator for fast maintenance checks
Stainless-steel braided discharge hose — rated for sustained high-pressure cycling without abrasion
Pneumatic idle control — throttles engine at 145 PSI to reduce fuel consumption during pressure hold
150-PSI rated regulator — downstream pressure setting independent of tank pressure cycling
Service Truck Builders and Trailer Riggers Using the AM2-SH09-B
Utility contractors building skid-mounted air systems on flatbed trucks specify the AM2-SH09-B with a separately sourced ASME tank matched to their tool demand. Aerial lift operators use base-mount compressors to power hydraulic assist systems and pneumatic tools from a common trailer skid. Fire apparatus fabricators integrate base-mount units into rescue vehicles where a tanked vertical compressor would exceed height clearances. Environmental contractors building decontamination trailers pair this unit with a remote-mounted storage tank.
Receiver Tank Requirement, Optional Upgrades, and Documents
A receiver tank is required and sold separately. Optional upgrades include the AX-0017 Electric Start kit (battery, tray, box, and cables), AX-0077 Battery Box/Tray, and AX-0103 Remote Start/Choke with 7-foot sealed cable for remote key-switch activation.
