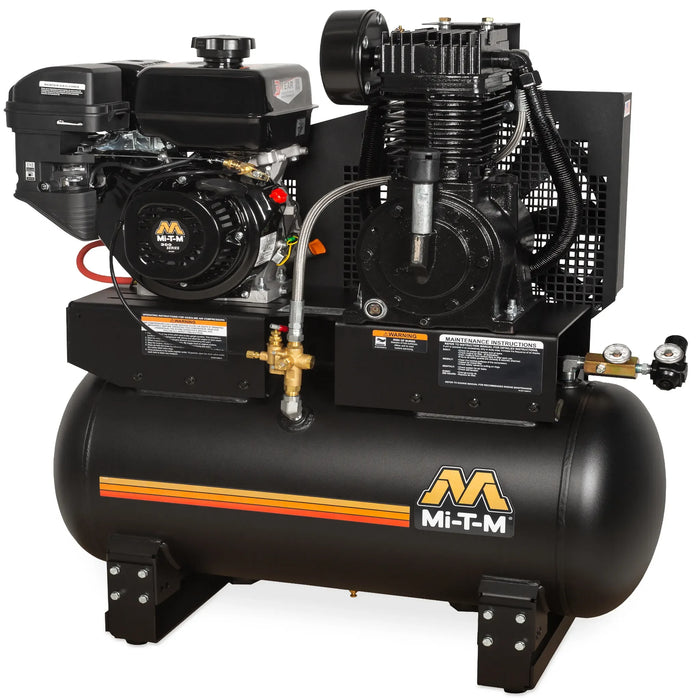

Mi-T-M AM2-SM09-30M 30-Gal Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV
Mi-T-M AM2-SM09-30M: 30-Gallon Two-Stage Compressor with Mi-T-M 300cc OHV Engine
The Mi-T-M AM2-SM09-30M uses a 300cc Mi-T-M OHV engine — the brand's own power platform — paired with a two-stage cast iron compressor pump producing 17.2 CFM at 175 PSI. The 30-gallon ASME powder-coated tank weighs 364 lbs net (434 lbs shipping), sitting between the Honda-engined models in overall weight. This manual-start unit ships as a complete tanked system ready for shop or field deployment.
Mi-T-M OHV Engine and Two-Stage Pump Performance
- 300cc Mi-T-M OHV engine — manufacturer-built power plant with vertically integrated parts support through Mi-T-M service network
- 17.2 CFM @ 175 PSI — two-stage output supports spray guns, DA sanders, and simultaneous multi-tool operation
- Cast iron two-stage pump — splash lubricated with oil sight indicator for pre-shift checks
- 30-gallon ASME powder-coated tank — passes code inspection requirements for pressurized vessels in commercial environments
- Stainless-steel braided discharge hose — resists kinking and abrasion under sustained high-pressure cycling
- Pneumatic idle control — reduces engine RPM automatically when tank pressure reaches 145 PSI
- Large canister intake filter — protects pump valves and extends service intervals
Industries Using the AM2-SM09-30M: Construction, Auto, and Industrial
Construction contractors position this unit at job sites to run framing nailers, finish guns, and roofing staplers across a crew of three to four operators. Auto body shops use it for sustained DA sanding and HVLP spray work where consistent pressure matters. Industrial maintenance teams rely on the Mi-T-M OHV engine's parts availability through the manufacturer's service network for minimal downtime on the floor.
What Ships and Optional Add-Ons
The AM2-SM09-30M ships complete with the 30-gallon tank, engine, and cast iron pump assembly. The optional AX-0003 Manual Drain/Regulator/Metal Bowl upgrades moisture control inline. No electric start comes pre-installed; for electric start, see the AM2-SM09-30ME variant.
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Engine | 300cc Mi-T-M OHV |
| Tank Size | 30 gallons (ASME) |
| Idle Control | Pneumatic |
| Net Weight | 364 lbs |
| Dimensions (L×W×H) | 40.50 × 17.50 × 44.50 in |
