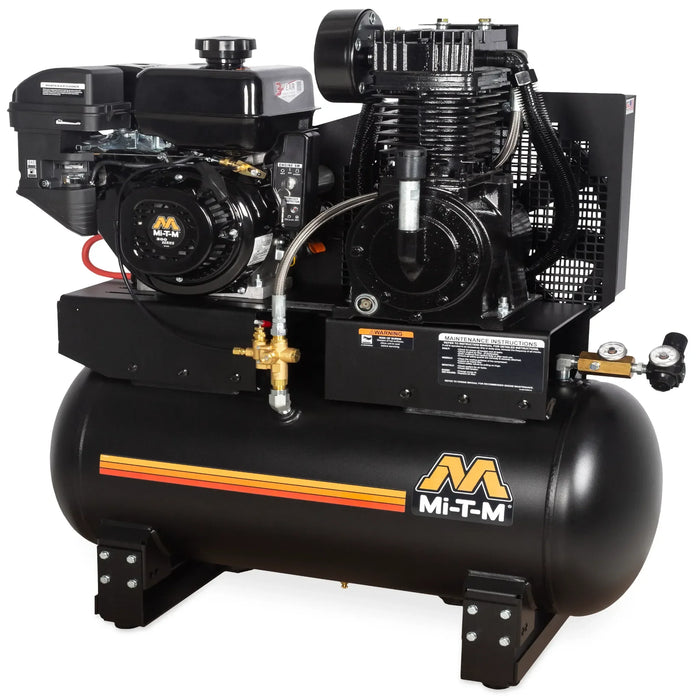

Mi-T-M AM2-SM09-30ME 30-Gal Two-Stage Gas Compressor – Electric Start, 300cc OHV
Mi-T-M AM2-SM09-30ME: Electric-Start 30-Gallon Two-Stage Compressor with Mi-T-M OHV Engine
The Mi-T-M AM2-SM09-30ME is the electric-start variant of the AM2-SM09 platform, adding pre-installed start wiring to the 300cc Mi-T-M OHV engine. Output is 17.2 CFM at 175 PSI from a 30-gallon ASME powder-coated receiver. At 379 lbs net (449 lbs shipping), the -30ME is 15 lbs heavier than the manual-start -30M due to the starter hardware. Battery, box, and cables are not included.
Electric Start, Cast Iron Pump, and Splash Lubrication Details
- Electric start pre-wired — accepts battery kit (AX-0017, sold separately) for push-button ignition without pull-cord effort
- 300cc Mi-T-M OHV engine — factory-supported power plant with parts available through Mi-T-M's dealer network
- 17.2 CFM @ 175 PSI — two-stage output for sustained air tool and spray gun operation
- Cast iron two-stage pump — splash lubricated with oil sight indicator and 145–175 PSI auto-cycle control
- Powder-coated receiver tank — ASME-rated, 30-gallon capacity with manual drain valve
- Stainless-steel braided discharge hose — handles continuous high-pressure cycling
- Removable base plate — enables direct skid or trailer floor mounting
Fleet Shops and Service Centers That Rely on Electric Start
Commercial service bays at dealerships and fleet maintenance facilities value electric start to eliminate pull-cord fatigue when technicians start the compressor multiple times per shift. Enclosed trailer operators prefer push-button start for safety when the unit is positioned away from easy pull-cord access. Generator-integrated mobile units can wire the electric start circuit directly to a relay for automated startup when air demand registers on a pressure switch.
Upgrade Options and What Ships
The AX-0017 Electric Start kit (battery, tray, box, and cables) completes the electric start system. The AX-0077 Battery Box/Tray and AX-0105 Remote Start/Choke (7-ft sealed cable key switch) are factory-order options for cab-controlled ignition. The AX-0003 Manual Drain/Regulator/Metal Bowl is recommended for moisture-sensitive downstream systems.
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Engine | 300cc Mi-T-M OHV |
| Tank Size | 30 gallons |
| Start Type | Electric (battery not included) |
| Net Weight | 379 lbs |
| Dimensions (L×W×H) | 40.50 × 17.50 × 44.50 in |
