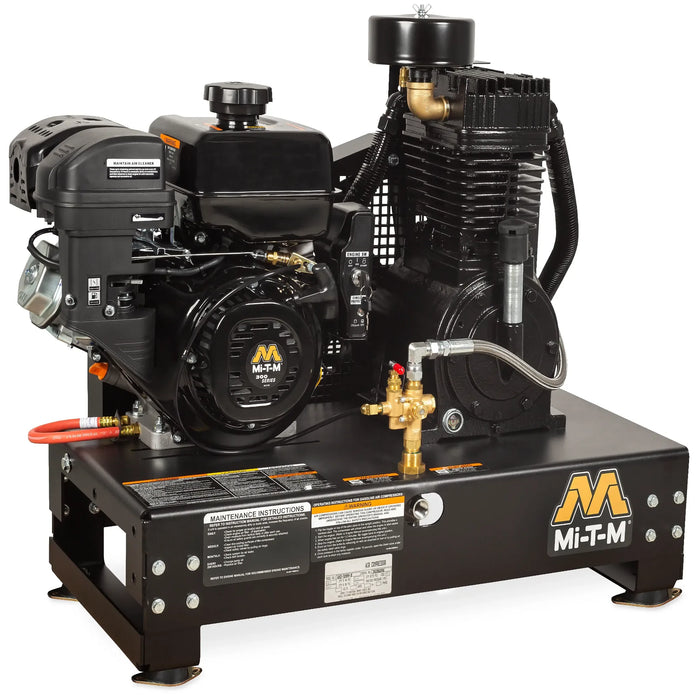

Mi-T-M AM2-SM09-B Base-Mount Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV

Mi-T-M AM2-SM09-B: Base-Mount Two-Stage Gasoline Compressor with Mi-T-M 300cc OHV Engine

The Mi-T-M AM2-SM09-B puts a 300cc Mi-T-M OHV engine on a base-mount two-stage compressor platform, producing 17.2 CFM at 175 PSI. Physically identical in dimensions to the Honda-engined AM2-SH09-B (309 lbs, 36.50 × 21.00 × 32.00 in), it substitutes Mi-T-M's own engine for operators who prefer single-source service through Mi-T-M dealers. No receiver tank is included.

300cc Mi-T-M OHV Engine and Base-Mount Compressor Details

• 300cc Mi-T-M OHV engine — manufacturer-supported power plant with integrated service through Mi-T-M's dealer and parts network
• 17.2 CFM @ 175 PSI — two-stage cast iron pump output matching the Honda-engined SM-class models
• Electric start capable — accepts optional AX-0017 battery start kit (battery not included)
• 150-PSI maximum rated regulator — downstream pressure tuning independent of tank cycling
• Stainless-steel braided discharge hose — sustained high-pressure output without abrasion failure
• Pneumatic idle control — auto-throttles at 145 PSI to conserve fuel and reduce engine wear
• 3/16-inch vibration-reducing base plate — absorbs mechanical vibration for stable mounting on truck beds and trailers

Trailer and Service Truck Builds Using the AM2-SM09-B

Contractors building enclosed trailer air systems pair the AM2-SM09-B with a remotely mounted 80-gallon ASME tank for maximum volume. Utility fleets that standardize on Mi-T-M equipment across compressors, pressure washers, and generators benefit from single-source parts and service technician training. HVAC and refrigeration contractors use base-mount configurations to build out van cargo areas with a compact air supply system. Agricultural equipment dealers mount these units in service trucks for field repair of pneumatic seeding and harvesting equipment.

Optional Upgrades and What Ships

The AM2-SM09-B ships without a receiver tank, battery, or electric start hardware. Optional upgrades: AX-0017 Electric Start (sealed battery, tray, box, cables), AX-0077 Battery Box/Tray, and AX-0104 Remote Start/Choke with 7-ft sealed cable for remote key-switch operation.

Spec Sheet | Manual
