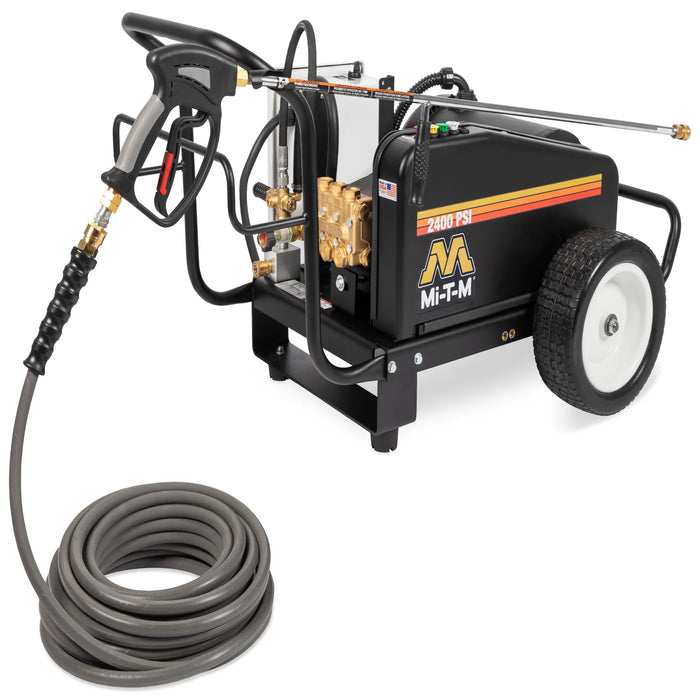

Mi-T-M CW-2405-5ME1 Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM, 230V

Mi-T-M CW-2405-5ME1 Electric Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM

The Mi-T-M CW-2405-5ME1 is an 8 HP, 230V single-phase belt drive pressure washer producing 2400 PSI and 4.6 GPM — 11,040 cleaning units. The belt drive system reduces pump speed relative to motor speed, running the General pump at lower RPM for extended seal life compared to direct drive configurations of similar output. It connects on a NEMA 6-50P plug at 34.6A and ships ready to work on a 322 lb powder-coated steel frame.

General Pump and Thermal Protection

• Pump brand: General triplex pump
• Manifold: Forged brass for sustained high-pressure operation
• Unloader: Factory preset Mi-T-M unloader — consistent output from day one
• External bypass system: Prevents heat buildup during trigger-closed bypass, extending pump life
• Thermal relief valve: Secondary protection against heat damage in bypass mode
• Water filter: Clear-sleeve inline filter for quick inspection without disassembly

Service Shops and High-Volume Cleaning

Belt drive pressure washers are the preferred choice in service shops, fleet wash bays, and facilities where machines run for multiple hours daily. The belt-driven General pump runs at lower RPM than direct drive, which reduces heat generation and extends pump component life. The CW-2405-5ME1 sits on 13-inch flat-free tires in a totally enclosed belt guard frame — the guard keeps belts safe from spray, debris, and contact. At 4.6 GPM, throughput is higher than most direct-drive units at this pressure rating, which reduces total time on surface cleaning tasks.

Cleaning Units and What Ships

2400 PSI × 4.6 GPM equals 11,040 cleaning units. The higher GPM (versus 3.9 GPM at 3000 PSI units) means faster rinsing and more surface coverage per minute. The CW-2405-5ME1 ships with a 50-ft × 3/8-inch non-marking hose, 36-inch insulated trigger gun with lance, and quick-connect nozzles in 0°, 15°, 25°, and 40° configurations. The 10-ft motor power cord is shorter than the JP Series — plan electrical access points accordingly.
