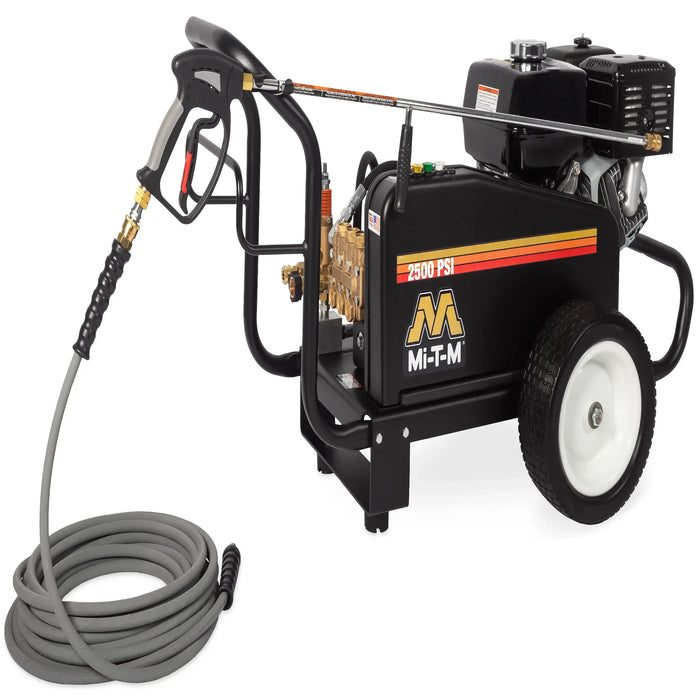

Mi-T-M CW-2505-4MGH Belt Drive Pressure Washer – 2500 PSI, 4.4 GPM, Honda GX390

Mi-T-M CW-2505-4MGH: 2500 PSI Belt Drive Workhorse with Honda GX390 and High-Flow Pump

The Mi-T-M CW-2505-4MGH is a gasoline belt-drive pressure washer delivering 2500 PSI at 4.4 GPM — 11,000 cleaning units — through a Honda GX390 OHV engine and General pump with external bypass system. The CW Premium Series pairs a forged brass manifold, thermal relief valve, and two-piece belt guard with a 216 lb steel frame on 13-inch flat-free tires, making it a reliable field unit for commercial and agricultural cleaning at manageable operating pressure.

CW-2505-4MGH Pump System and Belt Drive Configuration

• General pump with external bypass system — continuously recirculates water during trigger-off intervals to prevent heat damage to seals
• Forged brass manifold and thermal relief valve — combined protection against pressure spikes and thermal cycling fatigue
• Factory preset unloader at 2500 PSI — consistent operating pressure without daily field adjustment
• 36-inch insulated trigger lance — provides operator standoff distance suited to 2500 PSI spray angle characteristics
• Optional CX-0045 electric start with included battery — available for convenience-oriented operations

Cleaning Environments Well Matched to 2500 PSI, 4.4 GPM Output

Property maintenance companies cleaning concrete sidewalks, parking structures, and building facades use the 2500 PSI level to remove embedded dirt without surface etching risk. Fleet wash operators maintaining passenger vehicles, light trucks, and transit buses prefer lower-pressure, higher-flow configurations like 4.4 GPM because flow rate accelerates soap dwell and rinse time. Agricultural operations cleaning wooden barn structures, irrigation equipment, and post-harvest machinery benefit from the 4.4 GPM volume at the lower 2500 PSI that avoids pressure damage to older materials. The optional CX-0054 roll cage adds protection during field transport and the CX-0005 dual lance enables simultaneous dual-operator cleaning.

Included Components and Available Options

The CW-2505-4MGH ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Factory options include CX-0005 Insulated Dual Lance, CX-0045 Electric Start with battery, and CX-0054 Roll Cage. Not for sale in California.
