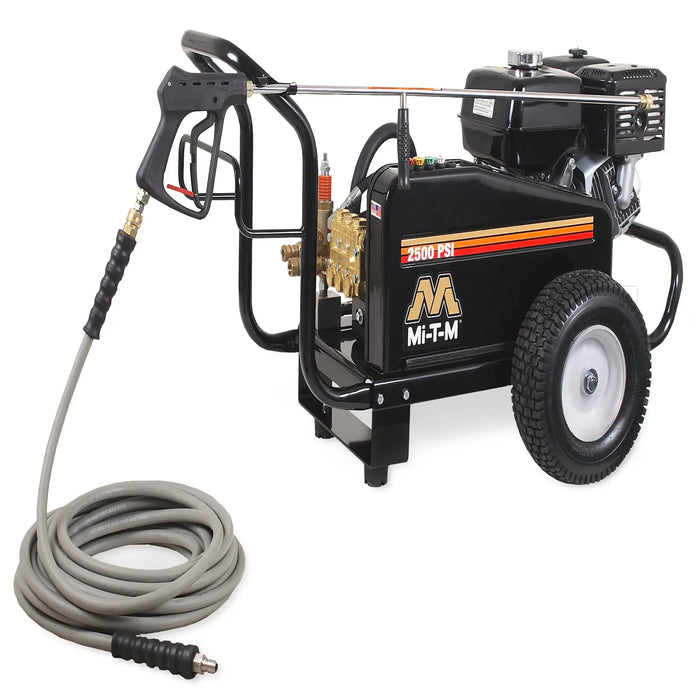

Mi-T-M CW-2505-4MGK Belt Drive Pressure Washer – 2500 PSI, 4.4 GPM, Kohler CH440
Mi-T-M CW-2505-4MGK: Kohler CH440-Powered Belt Drive Washer at 2500 PSI, 4.4 GPM
The Mi-T-M CW-2505-4MGK is a gasoline belt-drive pressure washer rated at 2500 PSI and 4.4 GPM, powered by a Kohler CH440 OHV 429cc engine with General pump and external bypass system. Sharing the CW Premium Series frame, manifold, and drive design with the Honda-engined 4MGH, the 4MGK offers Kohler's commercial OHV platform as an alternative powertrain for buyers with existing Kohler service relationships or parts preferences.
CW-2505-4MGK Pump and Kohler Engine Detail
- Kohler CH440 OHV 429cc engine — 14.5 gross HP with cast-iron cylinder sleeve, full-pressure lubrication, and Kohler commercial engine coverage
- General pump with external bypass system — same field-proven configuration as Honda-engined CW models for consistent pump longevity
- Forged brass manifold and thermal relief valve — handles sustained high-pressure cycles without manifold fatigue
- 13-inch flat-free tires on powder-coated steel frame — eliminates flat tire delays across gravel, dirt, and concrete surfaces
- Factory preset unloader at 2500 PSI — reduces operator setup time and field adjustment across job shifts
Operations Suited for the Kohler-Powered CW-2505-4MGK
Operations with Kohler-authorized service centers nearby gain the advantage of same-engine parts commonality when the 4MGK is selected over Honda-engined variants. Property management contractors, municipalities cleaning public infrastructure, and agricultural cooperatives with existing Kohler fleets integrate the 4MGK without adding a new engine platform. The 4.4 GPM flow rate at 2500 PSI covers sidewalk washing, vehicle fleet rinsing, and light equipment cleaning efficiently. The optional CX-0054 roll cage adds transport protection for crews who move the unit between multiple properties per day.
Included Kit and Available Factory Options
The CW-2505-4MGK ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Factory options include CX-0005 Insulated Dual Lance and CX-0054 Roll Cage. Not for sale in California.
| PSI | 2500 |
|---|---|
| GPM | 4.4 |
| Engine | 429cc Kohler CH440 OHV |
| Pump | General |
| Unloader | Mi-T-M Factory Preset |
| Lance Length | 36 in. |
| Net Weight | 216 lbs |
| Shipping Weight | 290 lbs |
| Dimensions (L×W×H) | 45.5 × 28 × 26 in. |
