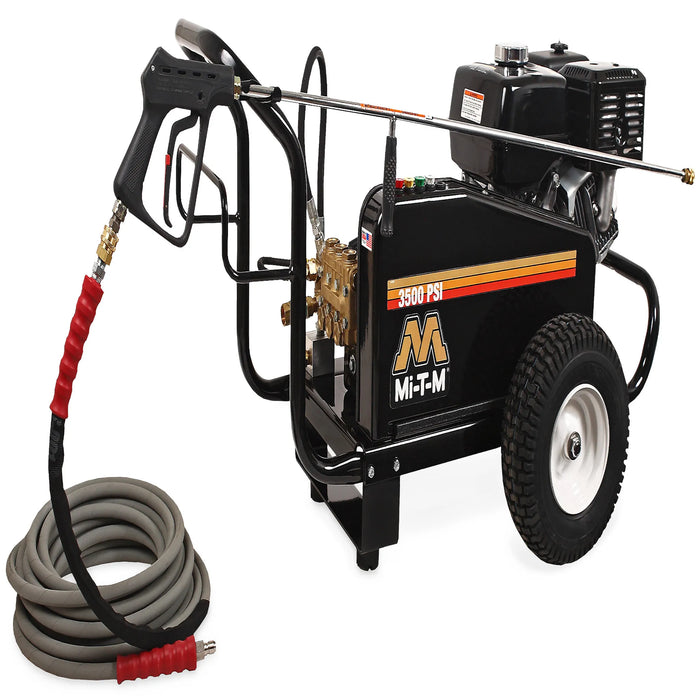

Mi-T-M CW-3504-5MGK Belt Drive Pressure Washer – 3500 PSI, 3.8 GPM, Kohler CH440
Mi-T-M CW-3504-5MGK: 3500 PSI Belt Drive Pressure Washer with Kohler CH440 Engine
The Mi-T-M CW-3504-5MGK delivers 3500 PSI at 3.8 GPM through a Kohler CH440 OHV 429cc engine and General pump with external bypass system in the CW Premium Series chassis. Sharing the same pump, frame, and belt drive as the Honda GX390-powered 5MGH, the 5MGK provides the Kohler CH440 powertrain for operations with existing Kohler service relationships or fleet standardization requirements at the 3500 PSI performance tier.
CW-3504-5MGK Kohler Engine and Pump Specifications
- Kohler CH440 OHV 429cc, 14.5 gross HP — cast-iron cylinder sleeve and full-pressure lubrication extend engine service intervals in dusty jobsite conditions
- General pump with external bypass at 3500 PSI — same pump platform as all CW-3504 variants for interchangeable service parts
- Forged brass manifold and thermal relief valve — withstands sustained high-pressure operation without manifold fatigue
- Factory preset unloader at 3500 PSI — consistent output without field pressure calibration required
- 13-inch flat-free tires on powder-coated frame — eliminates flat tire delays across gravel, mud, and concrete
Fleet Standardization and Commercial Use for the Kohler-Powered CW-3504
Operations maintaining Kohler-powered equipment fleets — generators, compact equipment, other pressure washers — reduce parts complexity when the CW-3504-5MGK is standardized. Municipal public works departments, agricultural cooperatives, and industrial service companies with Kohler dealer service contracts find the 5MGK the lowest total-cost-of-ownership option for high-pressure cleaning in their specific service environment. The 3500 PSI output handles concrete cleaning, heavy equipment degreasing, and building facade preparation efficiently across commercial and industrial applications.
Included Kit and Factory Options
Ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Factory options include Insulated Dual Lance and Roll Cage. Not for sale in California.
| PSI | 3500 |
|---|---|
| GPM | 3.8 |
| Engine | 429cc Kohler CH440 OHV |
| Pump | General |
| Unloader | Mi-T-M Factory Preset |
| Lance Length | 48 in. |
| Net Weight | 216 lbs |
| Shipping Weight | 290 lbs |
| Dimensions (L×W×H) | 46 × 28 × 30 in. |
