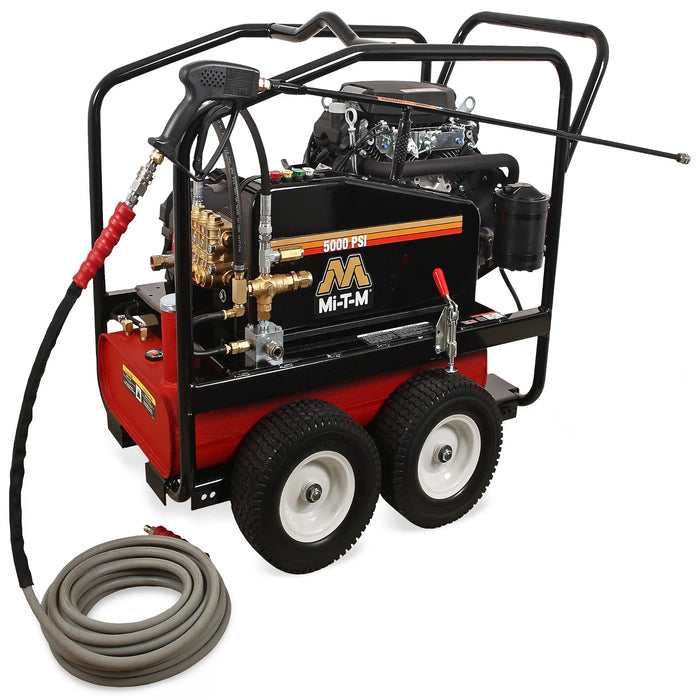

Mi-T-M CWC-5004-4MGH Belt Drive Pressure Washer – 5000 PSI, Honda GX630, General
Mi-T-M CWC-5004-4MGH Belt Drive Pressure Washer – 5000 PSI, Honda GX630, General
The Mi-T-M CWC-5004-4MGH delivers 5,000 PSI at 4.0 GPM through a 688cc Honda GX630 OHV engine and a General triplex pump. Powder-coated steel roll cage with lifting hook. Electric start with sealed battery. 13-gallon fuel tank with aluminized interior for up to 9.5 hours runtime. Factory-preset unloader. Weight: 449 lbs — 16 lbs heavier than the AR-pump variants due to the General pump configuration. 49-state compliant; not for sale in California.
CWC-5004-4MGH Honda and General Pump Specifications
- Pressure: 5,000 PSI
- Flow rate: 4.0 GPM
- Engine: 688cc Honda GX630 OHV, electric start, sealed battery
- Pump: General triplex with external bypass, forged brass manifold, thermal and safety relief valves, clear-sleeve water filter
- Unloader: Factory preset
- Fuel tank: 13 gallon, aluminized interior (up to 9.5 hr)
- Lance: 48 in.
- Hose: 50 ft × 3/8"
- Tires: 13" flat-free with locking brake
Honda GX630 with General Pump – High-PSI Industrial Applications
The CWC-5004-4MGH is the Honda-powered General-pump variant at 5,000 PSI. It is 16 lbs heavier than the Honda AR-pump 4MAH (433 lbs), reflecting the General pump's additional weight. Buyers who prefer General pump service networks over AR for their 5,000 PSI units will select the MGH over the MAH. Both use the same Honda GX630 engine and produce identical 20,000 Cleaning Units.
Frame and CWC Platform Notes
Optional CX-0118 skid feet for stationary mount (must be ordered with unit). Net weight: 449 lbs. Dimensions: 43" × 27.75" × 38.5".
| Model | CWC-5004-4MGH |
| PSI | 5,000 |
| GPM | 4.0 |
| Engine | 688cc Honda GX630 OHV, electric start |
| Pump | General |
| Unloader | Factory Preset |
| Fuel Tank | 13 gallon, aluminized interior |
| Hose | 50 ft × 3/8" |
| Lance | 48 in. |
| Dimensions | 43" × 27.75" × 38.5" |
| Net Weight | 449 lbs |
Documents: Spec Sheet · Manual
