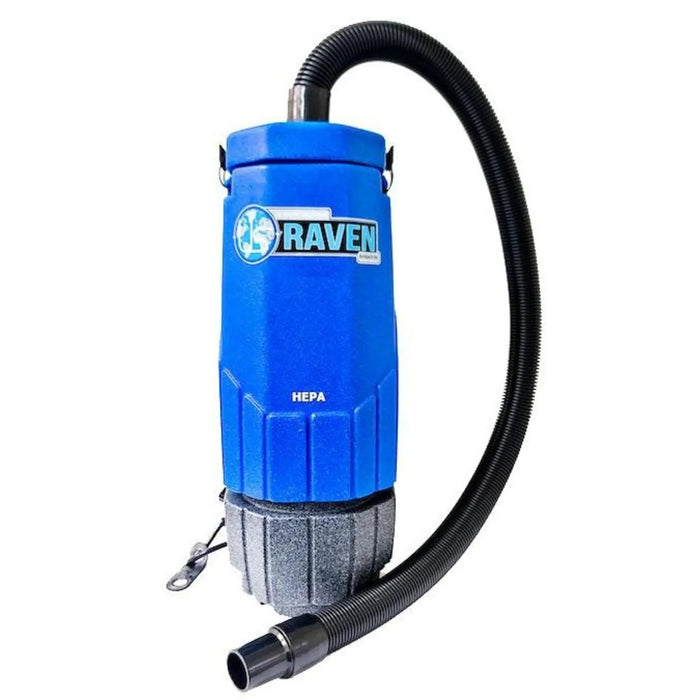

Sandia HEPA Raven 70-4003 Backpack Vacuum – 6 Qt, 150 CFM, HEPA Bag+Filter

Sandia HEPA Raven 70-4003 6-Quart Backpack Vacuum – Dual HEPA Filtration

The HEPA Raven adds two-stage HEPA filtration to the Raven backpack platform: a HEPA-rated bag captures particulates inside the collection chamber, and a HEPA motor filter catches anything that bypasses the bag before it reaches the exhaust. At 9.5 pounds with 150 CFM airflow, 95 inches of water lift, and a 67 dB noise level, it provides HEPA-certified exhaust in a lighter package than the 10-quart Super Raven. An interchangeable lid converts to blower mode for post-cleaning air circulation.

HEPA Raven 70-4003 Specs and Dual HEPA System

• Motor: 1,340 watts / 1.5 HP, 1-stage — 11.5 amps at 115V
• Airflow: 150 CFM — same as the Super Raven 10-quart and HEPA Hipster
• Water lift (static): 95 inches
• Filtration: HEPA bag + HEPA motor filter — two-barrier HEPA system
• Collection: 6 quarts — dual-bag system: HEPA paper bag inside washable cloth bag
• Noise level: 67 dB — within daytime occupied-space cleaning range
• Weight: 9.5 lbs — lightest HEPA-certified backpack in the Sandia lineup
• Blower: interchangeable lid for blower operation
• Hose: static-dissipating with swivel cuff — ambidextrous, 360° rotation
• Power cord: 50 ft safety
• Height: 23 inches
• Voltage: 115V
• Warranty: Lifetime (body), 5 years (motor and electrical), 90 days (tools/accessories)

Two-Barrier HEPA vs Single-Bag HEPA Filtration

Single-barrier HEPA systems rely on the HEPA bag alone. If the bag develops a pinhole, a poor seal at the collar, or fine particulates bypass the bag media at high airflow, those particles reach the motor and exhaust directly. The HEPA Raven's two-barrier system adds a HEPA motor filter as the second stage — particles that bypass the HEPA bag are captured before the motor exhaust path. For mold remediation, lead dust removal under EPA RRP protocols, and healthcare environments with strict HEPA compliance requirements, the two-barrier design provides additional assurance that exhaust air meets the 99.97% / 0.3-micron HEPA standard even under bag wear conditions.

HEPA Raven vs Super Raven — HEPA vs Capacity Tradeoff

The HEPA Raven (70-4003) and Super Raven (30-2003) use the same motor, deliver the same 150 CFM, and weigh approximately the same. The Super Raven holds 10 quarts with standard micro-filtration — longer runs between bag changes, no HEPA certification. The HEPA Raven holds 6 quarts with dual HEPA filtration — more frequent bag changes, HEPA-certified exhaust air. For facilities without regulated HEPA requirements, the Super Raven's larger bag capacity reduces shift interruptions. For healthcare, mold remediation, and regulated particulate applications where HEPA certification is required, the HEPA Raven is the correct specification. Both carry the same 5-year motor warranty.

Documents

70-4000 HEPA Raven Parts List
70-4003 HEPA Raven Parts List (with Power Head and Tool Kit)
70-4000 Schematic Drawing
HEPA Raven Info Sheet
