Lutron balances provide you with the most precise and accurate weighing results, even under the toughest weighing conditions.

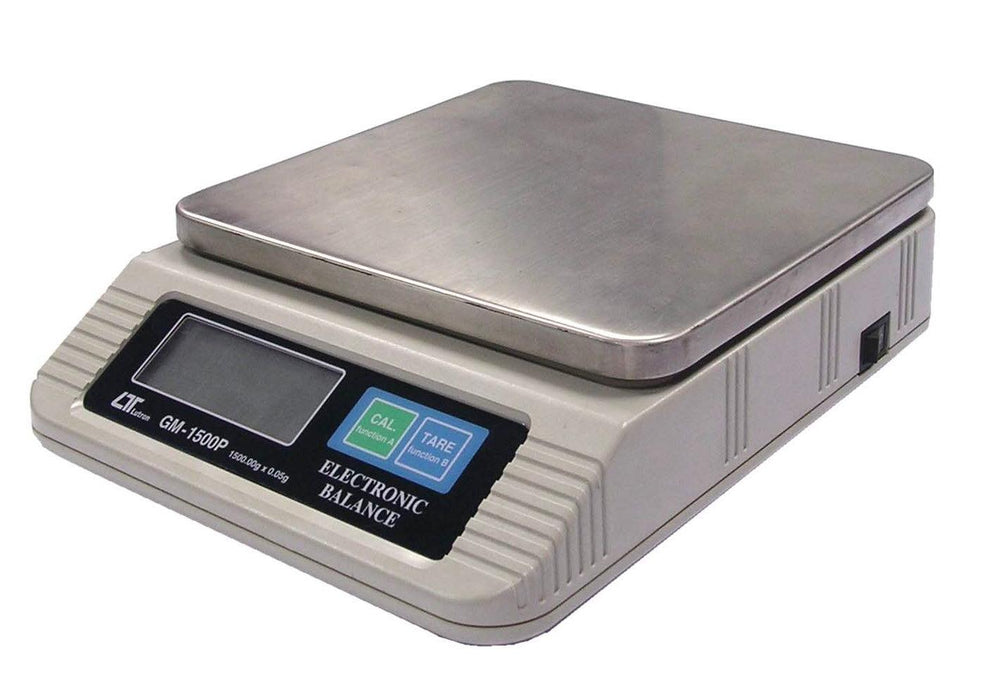

The GM-1500P precision balance has readability range between 0.5g and 1500g and a resolution of 0.05 g. This unit has a large 0.8-inch LCD display and 7.25” x 7.25” weighing platform. The unit can measure weight in grams or ounces. This balance can be powered using AA batteries or AC power.
These extremely durable balances made of heavy-duty ABS and stainless steel, are designed to withstand accidental overload, harsh chemicals, dust and dirt. Smooth surfaces and rounded edges make the whole balance extremely easy to clean.
- Microprocessor circuit with high accuracy & better performance
- High resolution & wide measuring capacity, 1500g x 0.05g, 50oz x 0.002oz
- Large LCD display, 20.9mm (0.8" digit size)
- Built-in gram & oz display unit, select by internal slide switch
- Built-in self calibration system - the calibration value can memorize into EEPROM circuit permanently even with the power off
- Counting scale function
- RS232/USB computer interface (with optional cable)
- Uses 6 AA batteries (included) or AC/DC adapter power source (optional)
- Heavy duty ABS housing
Specifications
|
SPECIFICATIONS
|
|
Display
|
LCD, 20.9 mm ( 0.8" ) digit size, 5 digits with annunciator.
|
|
Function
|
Weighting & counting.
|
|
Weighting range & resolution
|
Unit
|
Range
|
Resolution
|
|
Grams
|
0.50g to 1500g
|
0.05g
|
|
Ounces
|
0.02oz to 49.998oz
|
0.002oz
|
|
50oz to 52.8oz
|
0.005oz
|
|
Min. display weight
|
g
|
0.50g
|
|
oz
|
0.018oz
|
|
Unit select
|
Grams or ounces, select by internal slide switch
|
|
Accuracy
|
± ( 0.05 % + 0.2g )
*Within two hours after self calibration be executed at 23 ± 5℃
*Spec. tested under the environment RF Field Strength less than 3 V/M and frequency less than the 30 MHz only
|
|
Sampling time
|
Approx. 1 second
|
|
Tare control
|
Approx. 1500g max.
|
|
Transducer
|
Load cell
|
|
Circuit
|
Microprocessor
|
|
Auto self calibration
|
Use 500g or 1000g standard weight to execute self-calibration automatically.
|
|
Data Output
|
RS 232/USB PC computer interface.
*Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
*Connect the optional USB cable USB-01 will get the USB plug.
|
|
Counting sample no.
|
10 PCs, 20 PCs, 50 PCs or 100 PCs.
|
|
Operating temperature
|
0 to 50 ℃ ( 32 to 122 ℉ ).
|
|
Operating humidity
|
Less than 80% RH.
|
|
Size
|
Cabinet
|
250 x 190 x 70 mm.
|
|
Platform
|
185 x 185 mm.
|
|
Power Supply
|
6 x 1.5V AA (UM-3) battery x 6 PCs, or DC 9V adapter ( optional ).
|
|
Power Consumption
|
Approx. DC 17 mA.
|
|
Accessory Included
|
Users Manual
|
|
Optional Accessories
|
*Software (Windows): SW-U801-WIN, SW-E802.
*RS232 cable, UPCB-02.
*USB cable, USB-01.
*AC/DC 9V power adapter, AP-9VA.
|
Downloads
Instruction Manual
